Brand: GROWATT

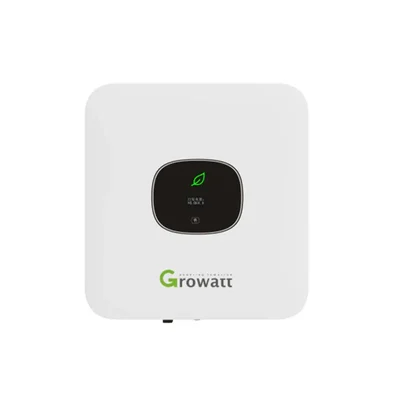

Growatt 3KW MIC3000TLX2 Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
SKU: TI-G3-50933
Delivery By: Dec 9 - Dec 11
MRP : ₹25000 ₹18000
28% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹18000 (Including GST)
MRP : ₹25000
28% OFF!
Get Extra ₹270 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Growatt 3KW MIC3000TLX2 Pro Solar
Single Phase Inverter
7 Years Warranty Designed for Residential Use
Country of origin: China
Specifications
- Brand: GROWATT
- Weight (Approx.) : 7 kg
Input data (DC)
- Max. recommended PV power (for module STC) : 4500W
- Max. DC voltage : 550V
- Start voltage : 50V
- Nominal voltage : 360V
- MPP voltage range : 50V-550V
- No. of MPP trackers : 1
- No. of PV strings per MPP tracker : 1
- Max. input current per MPP tracker : 18A
- Max. short-circuit current per MPP tracker : 24A
Output data (AC)
- AC nominal power : 3000W
- Max. AC apparent power : 3000VA
- Nominal AC voltage (range*) : 230V (180-280V)
- AC grid frequency (range*) : 50/60Hz (45-55Hz/55-65Hz)
- Max. output current : 14.3A
- Adjustable power factor : 0.8leading...0.8lagging
- THDi : <3%
- AC grid connection type : Single phase
Efficiency
- Max. efficiency : 97.6%
- European efficiency : 97.1%
- MPPT efficiency : 99.9%
Protection devices
- DC reverse polarity protection : Yes
- AC/DC surge protection : Type III / Type III
- Insulation resistance monitoring : Yes
- AC short-circuit protection : Yes
- Ground fault monitoring : Yes
- Grid monitoring : Yes
- Anti-islanding protection : Yes
- Residual-current monitoring unit : Yes
- AFCI protection : Optional
General data
- Dimensions (W / H / D) : 274/254/138mm
- Operating temperature range : -30°C ...+60°C
- Nighttime power consumption : < 0.5W
- Topology : Transformerless
- Cooling : Natural convection
- Protection degree : IP66
- Relative humidity : 100%
- Altitude : 4000m
- DC connection : H4/MC4(Optional)
- AC connection : Connector
- Display : OLED+LED/WIFI+APP
- Interfaces: RS485/USB/WiFi/GPRS/RF/LAN : Yes/Yes/Optional/Optional/Optional/Optional
- Warranty : 7 years
Description
Growatt MIC 3000TL-X2 Pro is a single-phase string inverter with a 3kW capacity, specifically designed for small-scale residential solar installations. It's part of the Pro series, indicating enhanced features for performance and reliability. With a 7-year standard warranty, it offers a dependable solution for homeowners looking for efficient and compact solar power conversion.
Features
:- High Efficiency : Often boasts a high maximum efficiency (e.g., up to 98.4%), maximizing energy harvest.
- Compact and Light : Its small, lightweight design makes it easy to install, often by a single person.
- IP65 Protection : Suitable for outdoor installation, offering high resistance to dust and water.
- Low Start-up Voltage : Enables the inverter to start producing power earlier in the morning and work longer in the evening, extending the operation time.
- DC/AC Ratio : Designed to handle a high DC input to AC output ratio, allowing for oversizing of the solar array for increased energy yield.
- Flexible Monitoring : Features options for local or remote monitoring via Wi-Fi, Ethernet, or GPRS (optional), allowing users to track performance easily via a smartphone app or web portal.
