Brand : UTL
UTL GPP3350 - Gamma+ Solar Inverter 3000VA 24V Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU : TB-UT-51773
MRP : ₹27000
₹20700
23% OFF!
-
1
+
Get Extra ₹311 OFF on Prepaid Orders
Delivery By: Dec 20 - Dec 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

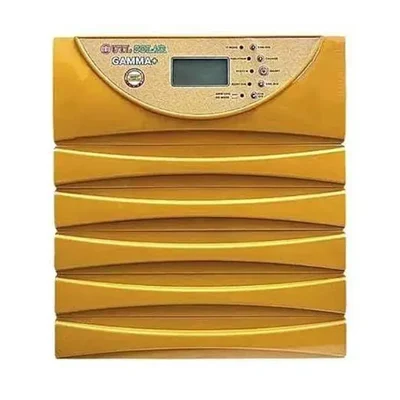

UTL GPP3350 - Gamma+ Solar Inverter
3000VA 24V Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specification
  • Brand: UTL
  • Weight (Approx.) : 20 kg
  • System Rating : 3000VA
  • Operating DC Voltage : 24V
  • Switching Element :  MOSFET
  • Charger Topology : Boost Mosfet
  • Max. Battery Capacity : 200AH
  • Operating Mode : Smart mode (Default)
  • Optional DG mode : Disable (Default)
  • Input Voltage Range (Min - Max) Voc : 60V-106V
  • Solar Power Maximum : 3000W

Parameters (Grid)
  • Nominal Grid Voltage : 230V 1Φ
  • Nominal frequency : 50Hz
  • Frequency Range : 47-53Hz ± 1Hz
  • Battery Charging Method 3 Stages : Bulk/Absorption/Float
  • Default charging mode : Tubular
  • Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
  • Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
  • Grid Charging Current : 10A/15A ± 2A
  • Optional Grid charging : Enable
  • Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
  • Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
  • Grid Low Cut Voltage : 170V ± 10V
  • Grid Low Cut Recovery : 180V ± 10V
  • Grid High Cut Voltage : 265V ± 10V
  • Grid High Cut Recovery : 255V ± 10V
  • Grid Low Cut Voltage : 100V ± 10V
  • Grid Low Cut Recovery : 110V ± 10V
  • Grid High Cut Voltage : 290V ± 10V
  • Grid High Cut Recovery : 280V ± 10V
  • Change Over (Battery to Mains) : <8ms
  • Change Over (Mains to Battery) : <12ms
  • Change Over (Mains to Battery) : <30ms

Parameters (Inverter)
  • Output Phase : 1Φ
  • Nominal Output Voltage : 230V
  • Output voltage range : 230V ± 10%
  • Nominal Frequency : 50 Hz ± 1%
  • Max. Output Current : 9.0A
  • Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
  • Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
  • Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery )
  • Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery )
  • Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery )
  • Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery )
  • Output Waveform : Sinewave
  • Typical Efficiency : >82%
  • Voltage Harmonic : <3% (Linear Load)

Parameters (Solar)
  • Switching Element : Mosfet
  • Type of Charger : MPPT
  • SPV Charging Current (Battery) : 18A ± 2A (Def.)
  • Battery Charging Method 3 Stages : Bulk/Absorption/Float
  • Efficiency : >94%
Description
The UTL Gamma+ (GPP3350) is a high-capacity, integrated Solar Power Conditioning Unit (PCU) rated at 3000VA (3kVA) for a 24V dual battery system. It features an advanced in-built rMPPT Solar Charge Controller (typically 50A or 60A) that can support a massive solar array of up to 3350 Watts (W), yielding up to 30% more power than conventional PWM systems. This premium PCU delivers a stable Pure Sine Wave output, giving maximum priority to solar energy to run the load and charge the batteries via three intelligent modes (PCU, Smart, Hybrid) to ensure significant electricity bill savings. Equipped with a Multi-Color LCD display and supporting both Lead-Acid and Lithium batteries, it offers a high-efficiency solution backed by a 3-year warranty.

Features

 :
  • Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
  • Output Waveform : Modified Sine Wave output
  • Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
  • Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
  • Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
  • Load Compatibility : Compatible with IT loads
  • Flexibility : Can operate without solar panels, functioning as a regular inverter initially
  • Protection : Comprehensive electronic protections
  • Display : LED display for operational status and fault indications
