Brand: GROWATT

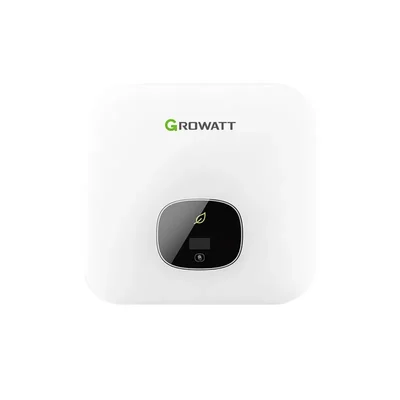

Growatt 5KW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
SKU: TI-G5-50954
Delivery By: Dec 9 - Dec 11
MRP : ₹42000 ₹31200
26% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹31200 (Including GST)
MRP : ₹42000
26% OFF!
Get Extra ₹468 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Growatt 5KW MIN5000TLX2Pro
Solar Single Phase Inverter
7 Years Warranty Designed for Residential Use
Country of origin: China
Specifications
- Brand: GROWATT
- Weight (Approx.) : 11 kg
Input data (DC)
- Max. recommended PV power (for module STC) : 7500W
- Max. DC voltage : 550V
- Start voltage : 50V
- Nominal voltage : 360V
- MPP voltage range : 40V-550V
- No. of MPP trackers : 2
- No. of PV strings per MPP tracker : 1
- Max. input current per MPP tracker : 18A
- Max. short-circuit current per MPP tracker : 24A
Output data (AC)
- AC nominal power : 5000W
- Max. AC apparent power : 5000VA
- Nominal AC voltage (range*) : 230V (160-300V)
- AC grid frequency (range*) : 50/60Hz (45-55Hz/54-65Hz)
- Max. output current : 22.7A
- Adjustable power factor : 0.8leading...0.8lagging
- THDi : <3%
- AC grid connection type : Single phase
Efficiency
- Max. efficiency : 98.4%
- European efficiency : 97.5%
- MPPT efficiency : 99.9%
Protection devices
- DC reverse polarity protection : Yes
- DC surge protection : Type II
- Insulation resistance monitoring : Yes
- AC surge protection : Type IIl
- AC short-circuit protection : Yes
- Grid monitoring : Yes
- Anti-islanding protection : Yes
- Residual-current monitoring unit : Yes
- AFCI protection : Optional
General data
- Dimensions (W / H / D) : 375/350/158mm
- Operating temperature range : -30°C ...+60°C
- Nighttime power consumption : < 1W
- Topology : Transformerless
- Cooling : Natural convection
- Protection degree : IP66
- Relative humidity : 0 - 100%
- Altitude : 4000m
- DC connection : H4/MC4(Optional)
- AC connection : Connector
- Display : OLED+LED
- Interfaces: RS485/USB/WiFi/GPRS/RF/LAN : Yes/Yes/Optional/Optional/Optional/Optional
- Warranty : 7 years
Description
Growatt MIN 5000TL-X2 Pro is a high-power, 5 kW single-phase string inverter engineered for peak performance in residential and light commercial solar installations. Part of the advanced Pro series, it is designed for ease of installation, high safety, and maximum energy generation. With its maximum efficiency of 98.4% and a 7-year standard warranty, it provides a reliable, high-yield solution for homeowners.
Features
:- High Energy Yield : Boasts a maximum efficiency of 98.4% and utilizes advanced MPPT (Maximum Power Point Tracking) technology for maximizing power production.
- Dual MPPT Trackers : Features two independent MPPTs (Maximum Power Point Trackers), which is ideal for complex roof layouts or situations with partial shading, ensuring optimal performance from both PV strings.
- Over-Sizing Capability : Supports a high maximum recommended PV input power of up to 7500W (7.5 kW) on a 5 kW output, allowing for efficient over-sizing of the solar array.
- User-Friendly Design : Extremely compact and lightweight (approx. 10.8kg) for easy, one-person installation.11 Includes a Touch Key and OLED Display for local monitoring and setup.
- Robust Protection : Rated IP66 for high resistance to dust and water, suitable for outdoor mounting. Includes integrated Type II Surge Protection Device (SPD) on the DC side.
- Advanced Safety : Features DC reverse polarity protection, ground fault monitoring, and an optional AFCI (Arc-Fault Circuit Interrupter) function for enhanced fire safety.
- Future-Proof : Designed to be "Battery Ready" in the related XH series, often indicating a platform that allows for easy future integration with battery storage systems without extensive retrofit costs.
