Brand: LUMINOUS

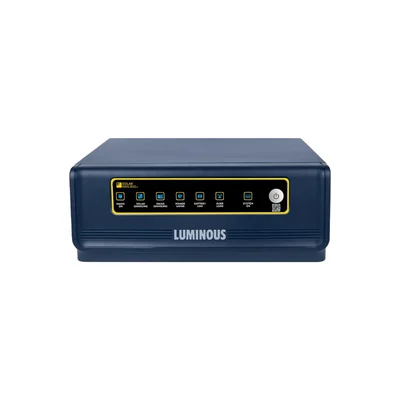

Luminous NXG Pro 1KVA/12V Solar Grid Tie Inverter With 10 Years Warranty Designed for Residential Use
SKU: TI-LN-51087
Delivery By: Dec 9 - Dec 11
MRP : ₹16000 ₹13900
13% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹13900 (Including GST)
MRP : ₹16000
13% OFF!
Get Extra ₹209 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Luminous NXG Pro 1KVA/12V Solar Grid Tie Inverter
10 Years Warranty
Designed for Residential Use
Country of origin: India
Specifications
- Brand: LUMINOUS
- Weight (Approx.) : 15 kg
- Nominal Battery Voltage (Vdc) : 12V
- Capacity (kVA) : 1
- Output Waveform : Pure Sine Wave
Solar Photovoltaic Input
- Charge Controller Type : MPPT
- Maximum PV power : 1000Wp
- Input Voltage range (Voc) : 35V-55V
Grid Input
- Operating Voltage Range : 90V-290V
Grid Output
- No Load Output : 230V +/- 10V
- Output frequency battery mode : 50 Hz +/- 0.5Hz
- Inverter Efficiency : >80%
User Selectable From Front Switch
- Mode Selections : Solar/Solar+Grid/Grid+Solar
- Battery Type Selections : Tubular/SMF/Flat
- No Load Shutdown : Enable/Disable
Mains Charging Current
- Solar Mode : 0A*
- Solar + Grid Mode : 15A±2A
- Grid + Solar Mode : 20A±2A
Battery
- No. of Batteries : 1
- Battery Charging Current from Solar : 30A±2A
- Battery Charging Current from Grid : 0A/15A/20A
- Type of Battery Supported : Tubular/SMF/Flat
Protections
- Overload : >102%
- Protections : Short circuit, Overload, Over temperature, Low Battery, No Load Shutdown
- Alarms : Battery low pre-alarm, Battery low, Short-circuit, Overload, Faults
LCD Display
- LCD Display Messages : Mains Available, Power Saving, Solar Current,Solar Voltage, Solar Power, System On, Grid Charging, Low Battery, Overload, No Load Shutdown
Environment
- Ambient operating temperature : 0-45°C
- Storage Temperature : 0-50°C
- Humidity : Upto 95%(Non-Condensed)
- Cooling system : Forced Cooling
Standard Compliance
- Certifications : BIS certified as per IS/IEC standards
General
- Net weight (Kg) : 14.1 kg
- Gross weight (Kg) : 15.5 kg
- Dimensions LxWxH (mm) : 356 X 320 X 138 mm
Description
NXG PRO is an intelligent solar inverter with 3 User Settable Saving Modes Solar Mode, Solar+Grid Mode and Grid+Solar Mode. Max Capacity Utilization Connect Solar Panels equivalent to Solar Inverter’s VA ratings. Powerful Charging on Low Voltage Charges even at 90V making it ideal for areas having low voltage problem. All New LCD Display View Daily Solar Generation Data, Battery Status, Alerts, etc. Compatible With Both 12V & 24V Solar Panels Gives you the flexibility to connect either 12V or 24V solar panels.
Features
:- Smart Hybrid Solar Inverter : Automatically switches between solar and grid power, ensuring uninterrupted electricity supply.
- Pure Sine Wave Technology : Provides stable, noise-free power, protecting sensitive appliances like TVs, computers, and refrigerators.
- 12V System for Reliable Backup : Ideal for homes and small offices, supporting essential appliances during power cuts.
- Fast Charging & High Efficiency : Optimized for maximum solar power utilization, reducing electricity bills and grid dependency.
- Durable & Low Maintenance : Designed for long-lasting performance with minimal upkeep, ensuring reliable and cost-effective power backup.
