Brand: GROWATT

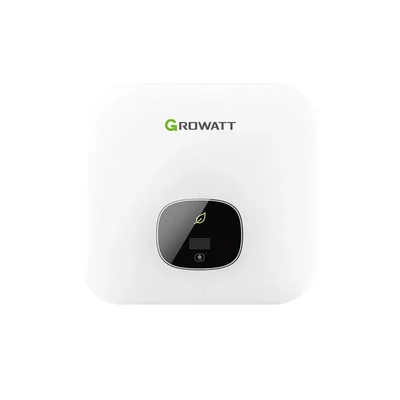

Growatt 4.2KW MIN4200TLX2 Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
SKU: TI-G4-50951
Delivery By: Dec 9 - Dec 11
MRP : ₹40000 ₹29800
26% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹29800 (Including GST)
MRP : ₹40000
26% OFF!
Get Extra ₹447 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Growatt 4.2KW MIN4200TLX2 Pro
Solar Single Phase Inverter
7 Years Warranty Designed for Residential Use
Country of origin: China
Specifications
- Brand: GROWATT
- Weight (Approx.) : 11 kg
Input data (DC)
- Max. recommended PV power (for module STC) : 6300W
- Max. DC voltage : 550V
- Start voltage : 50V
- Nominal voltage : 360V
- MPP voltage range : 40V-550V
- No. of MPP trackers : 2
- No. of PV strings per MPP tracker : 1
- Max. input current per MPP tracker : 18A
- Max. short-circuit current per MPP tracker : 24A
Output data (AC)
- AC nominal power : 4200W
- Max. AC apparent power : 4200VA
- Nominal AC voltage (range*) : 230V (160-300V)
- AC grid frequency (range*) : 50/60Hz (45-55Hz/54-65Hz)
- Max. output current : 19A
- Adjustable power factor : 0.8leading...0.8lagging
- THDi : <3%
- AC grid connection type : Single phase
Efficiency
- Max. efficiency : 98.4%
- European efficiency : 97.2%
- MPPT efficiency : 99.9%
Protection devices
- DC reverse polarity protection : Yes
- DC surge protection : Type II
- Insulation resistance monitoring : Yes
- AC surge protection : Type IIl
- AC short-circuit protection : Yes
- Grid monitoring : Yes
- Anti-islanding protection : Yes
- Residual-current monitoring unit : Yes
- AFCI protection : Optional
General data
- Dimensions (W / H / D) : 375/350/158mm
- Operating temperature range : -30°C ...+60°C
- Nighttime power consumption : < 1W
- Topology : Transformerless
- Cooling : Natural convection
- Protection degree : IP66
- Relative humidity : 0 - 100%
- Altitude : 4000m
- DC connection : H4/MC4(Optional)
- AC connection : Connector
- Display : OLED+LED
- Interfaces: RS485/USB/WiFi/GPRS/RF/LAN : Yes/Yes/Optional/Optional/Optional/Optional
- Warranty : 7 years
Description
Growatt MIN 4200TL-X2 Pro is a high-performance 4.2 kW single-phase string inverter designed for maximizing energy yield in modern residential and small commercial solar systems. This Pro model features advanced technology and enhanced durability for reliability. With a 7-year standard warranty, its compact, lightweight design and high 98.4% maximum efficiency make it an excellent choice for homeowners seeking efficient and flexible solar power conversion.
Features
:- High Maximum Efficiency : Achieves a maximum efficiency of up to 98.4%, ensuring optimal energy harvest from the solar array.
- Dual MPPT Trackers : Equipped with two Maximum Power Point Trackers (MPPTs) (some variants may have one), which are essential for maximizing performance on roofs with multiple orientations or partial shading.
- Wide MPPT Voltage Range : A wide operating voltage range (40 V - 550 V) allows for greater flexibility in string design and earlier energy production.
- Compact & Lightweight : Designed for easy, one-person installation, minimizing labor costs and simplifying mounting.
- IP66 Protection : Provides superior protection against dust and strong jets of water, making it extremely durable for outdoor installation.
- User-Friendly Interface : Features a Touch Key and OLED Display for easy configuration and local monitoring.
- Advanced Safety : Includes Type II Surge Protection Device (SPD) on the DC side and an optional AFCI (Arc-Fault Circuit Interrupter) function for enhanced safety and fire prevention.
- Future-Proof : Often described as "Battery Ready" in the TL-XH series (a related line) or supporting easy integration with smart energy management systems.
- Flexible Monitoring : Supports various communication interfaces (Wi-Fi, GPRS, LAN via optional dongles) for remote monitoring via a mobile app or web platform.
