Brand: UTL

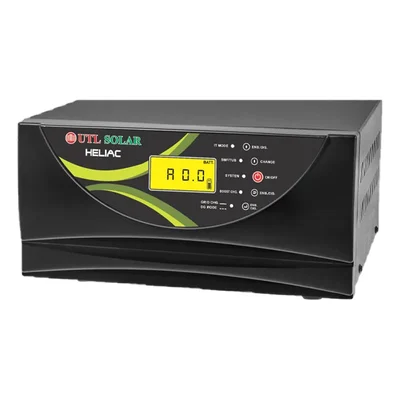

UTL HELIAC 2000 -24V Inverter 1500VA 24V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU: TB-UT-51759
Delivery By: Dec 12 - Dec 14
MRP : ₹11700 ₹9000
23% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9000 (Including GST)
MRP : ₹11700
23% OFF!
Get Extra ₹135 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL HELIAC 2000 -24V Inverter
1500VA 24V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty
1500VA 24V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 20 kg
- System Rating : 1500VA
- Operating DC Voltage : 24V
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Max. Battery Capacity : 200AH
- Operating Mode : Smart mode (Default)
- Optional DG mode : Disable (Default)
- Solar Power Maximum : 1500W
Parameters (Grid)
- Nominal Grid Voltage : 230V 1Φ
- Nominal frequency : 50Hz
- Frequency Range : 47-53Hz ± 1Hz
- Battery Charging Method 3 Stages : Bulk/Absorption/Float/Equalize
- Default charging mode : Tubular
- Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
- Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
- Grid Charging Current : 12A/15A ± 2A
- Optional Grid charging : Enable
- Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
- Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
- Grid Low Cut Voltage : 170V ± 10V
- Grid Low Cut Recovery : 180V ± 10V
- Grid High Cut Voltage : 265V ± 10V
- Grid High Cut Recovery : 255V ± 10V
- Grid Low Cut Voltage : 100V ± 10V
- Grid Low Cut Recovery : 110V ± 10V
- Grid High Cut Voltage : 290V ± 10V
- Grid High Cut Recovery : 280V ± 10V
- Change Over (Battery to Mains) : <5ms
- Change Over (Mains to Battery) : <12ms
- Change Over (Mains to Battery) : <30ms
Parameters (Inverter)
- Output Phase : 1Φ
- Nominal Output Voltage : 230V ± 8%
- Nominal Frequency : 50 Hz ± 1%
- Max. Output Current : 4.3A
- Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
- Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
- Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery)
- Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery)
- Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery)
- Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery)
- Output Waveform : Sinewave
- Typical Efficiency : >85%
- Voltage Harmonic : <3% (Linear Load)
Parameters (Solar)
- Switching Element : Mosfet
- Type of Charger : PWM
- SPV Charging Voltage (Boost) : 14.7V ± 0.2V (Each Battery)
- SPV Charging Voltage (Boost) : 13.9V ± 0.2V (Each Battery)
- Efficiency : >95%
Description
The UTL Heliac 2000 (Model HL2000) is a robust Solar Power Conditioning Unit (PCU) rated at 1500VA for a 24V dual battery system. It is equipped with a high-current inbuilt 50A PWM Solar Charge Controller, allowing it to support up to 1200 Watts of solar panels. This PCU delivers Pure Sine Wave output, making it safe for all sensitive home and office appliances (IT loads). Its intelligent design gives maximum preference to solar power for both charging and running the load, offering multiple selectable modes (PCU, Smart, Hybrid) for superior energy management and significant electricity savings. It ensures reliable, uninterrupted power and comes with a 3-year warranty.
Features
:- Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
- Output Waveform : Modified Sine Wave output
- Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
- Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
- Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
- Load Compatibility : Compatible with IT loads
- Flexibility : Can operate without solar panels, functioning as a regular inverter initially
- Protection : Comprehensive electronic protections
- Display : LED display for operational status and fault indications
