Brand: UTL

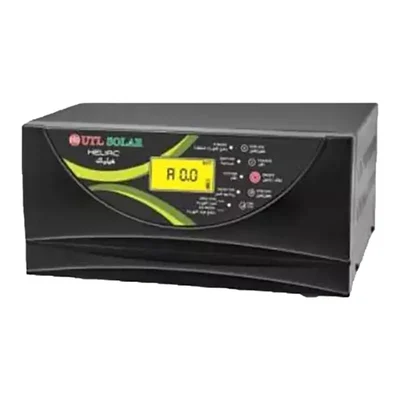

UTL HELIAC 4000 -48V Inverter 3500VA 48V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU: TB-UT-51763
Delivery By: Dec 12 - Dec 14
MRP : ₹26700 ₹20500
23% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹20500 (Including GST)
MRP : ₹26700
23% OFF!
Get Extra ₹308 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL HELIAC 4000 -48V Inverter
3500VA 48V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty
3500VA 48V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 30 kg
- System Rating : 3500VA
- Operating DC Voltage : 48V
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Max. Battery Capacity : 200AH
- Operating Mode : Smart mode (Default)
- Optional DG mode : Disable (Default)
- Solar Power Maximum : 3000W
Parameters (Grid)
- Nominal Grid Voltage : 230V 1Φ
- Nominal frequency : 50Hz
- Frequency Range : 47-53Hz ± 1Hz
- Battery Charging Method 3 Stages : Bulk/Absorption/Float/Equalize
- Default charging mode : Tubular
- Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
- Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
- Grid Charging Current : 12A/15A ± 2A
- Optional Grid charging : Enable
- Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
- Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
- Grid Low Cut Voltage : 170V ± 10V
- Grid Low Cut Recovery : 180V ± 10V
- Grid High Cut Voltage : 265V ± 10V
- Grid High Cut Recovery : 255V ± 10V
- Grid Low Cut Voltage : 100V ± 10V
- Grid Low Cut Recovery : 110V ± 10V
- Grid High Cut Voltage : 290V ± 10V
- Grid High Cut Recovery : 280V ± 10V
- Change Over (Battery to Mains) : <5ms
- Change Over (Mains to Battery) : <12ms
- Change Over (Mains to Battery) : <30ms
Parameters (Inverter)
- Output Phase : 1Φ
- Nominal Output Voltage : 230V ± 8%
- Nominal Frequency : 50 Hz ± 1%
- Max. Output Current : 4.3A
- Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
- Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
- Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery)
- Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery)
- Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery)
- Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery)
- Output Waveform : Sinewave
- Typical Efficiency : >85%
- Voltage Harmonic : <3% (Linear Load)
Parameters (Solar)
- Switching Element : Mosfet
- Type of Charger : PWM
- SPV Charging Voltage (Boost) : 14.7V ± 0.2V (Each Battery)
- SPV Charging Voltage (Boost) : 13.9V ± 0.2V (Each Battery)
- Efficiency : >95%
Description
UTL 3500VA/48V Offgrid PWM Solar PCU Home, HELIAC 4000-48V is a premium quality product from UTL. Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All UTL 3500VA/48V Offgrid PWM Solar PCU Home, HELIAC 4000-48V are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture UTL 3500VA/48V Offgrid PWM Solar PCU Home, HELIAC 4000-48V, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. UTL products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of UTL Solar Inverter.
Features
:Inbuilt Solar Charge Controller
: Ensures up to 30% more energy generation from solar panels compared to PWM controllers
Output Waveform : Modified Sine Wave output
Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
Load Compatibility : Compatible with IT loads
Flexibility : Can operate without solar panels, functioning as a regular inverter initially
Protection : Comprehensive electronic protections
Display : LED display for operational status and fault indications.
: Ensures up to 30% more energy generation from solar panels compared to PWM controllers
Output Waveform : Modified Sine Wave output
Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
Load Compatibility : Compatible with IT loads
Flexibility : Can operate without solar panels, functioning as a regular inverter initially
Protection : Comprehensive electronic protections
Display : LED display for operational status and fault indications.
