Brand: GROWATT

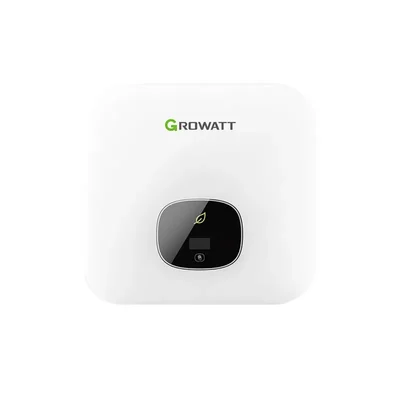

Growatt 6KW MIN6000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
SKU: TI-G6-50955
Delivery By: Dec 9 - Dec 11
MRP : ₹45000 ₹34500
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹34500 (Including GST)
MRP : ₹45000
23% OFF!
Get Extra ₹518 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Growatt 6KW MIN6000TLX2Pro
Solar Single Phase Inverter
7 Years Warranty Designed for Residential Use
Country of origin: China
Specifications
- Brand: GROWATT
- Weight (Approx.) : 11 kg
Input data (DC)
- Max. recommended PV power (for module STC) : 9000W
- Max. DC voltage : 550V
- Start voltage : 50V
- Nominal voltage : 360V
- MPP voltage range : 40V-550V
- No. of MPP trackers : 2
- No. of PV strings per MPP tracker : 1
- Max. input current per MPP tracker : 18A
- Max. short-circuit current per MPP tracker : 24A
Output data (AC)
- AC nominal power : 6000W
- Max. AC apparent power : 6000VA
- Nominal AC voltage (range*) : 230V (160-300V)
- AC grid frequency (range*) : 50/60Hz (45-55Hz/54-65Hz)
- Max. output current : 27.2A
- Adjustable power factor : 0.8leading...0.8lagging
- THDi : <3%
- AC grid connection type : Single phase
Efficiency
- Max. efficiency : 98.4%
- European efficiency : 97.5%
- MPPT efficiency : 99.9%
Protection devices
- DC reverse polarity protection : Yes
- DC surge protection : Type II
- Insulation resistance monitoring : Yes
- AC surge protection : Type IIl
- AC short-circuit protection : Yes
- Grid monitoring : Yes
- Anti-islanding protection : Yes
- Residual-current monitoring unit : Yes
- AFCI protection : Optional
General data
- Dimensions (W / H / D) : 375/350/158mm
- Operating temperature range : -30°C ...+60°C
- Nighttime power consumption : < 1W
- Topology : Transformerless
- Cooling : Natural convection
- Protection degree : IP66
- Relative humidity : 0 - 100%
- Altitude : 4000m
- DC connection : H4/MC4(Optional)
- AC connection : Connector
- Display : OLED+LED
- Interfaces: RS485/USB/WiFi/GPRS/RF/LAN : Yes/Yes/Optional/Optional/Optional/Optional
- Warranty : 7 years
Description
The Growatt MIN 6000TL-X2 Pro is a powerful 6 kW single-phase string inverter, representing a top-tier choice for larger residential and light commercial solar applications. As part of the Pro series, it is engineered for exceptional energy harvesting and reliability. Key features include its impressive maximum efficiency of up to 98.4% and dual MPPTs, coupled with a standard 7-year warranty. Its design focuses on being lightweight and easy to install while providing advanced safety and smart monitoring capabilities.
Features
:- High Energy Conversion : Offers a maximum efficiency of up to 98.4%, ensuring maximum energy is converted from your solar panels.
- Dual MPPT Trackers : Equipped with two Maximum Power Point Trackers (MPPTs), allowing it to efficiently handle solar arrays split across multiple roof sections or subject to differing levels of shading, maximizing overall yield.
- Exceptional Oversizing : Supports a high maximum recommended PV input power of up to 9000W (9 kW) on a 6kW output, providing flexibility for array design and future expansion.
- Lightweight & Compact : Weighs approximately 10.8 kg, making it one of the lightest in its power class, facilitating easy, single-person installation.
- Superior Protection : Features an IP66 rating, making it highly resistant to dust ingress and water jets for secure outdoor mounting. Includes integrated Type II Surge Protection Device (SPD) on the DC side for added safety.
- User Interface & Safety : Utilizes a responsive Touch Key and OLED Display for local configuration. Incorporates advanced safety measures like DC reverse polarity protection and the option for AFCI (Arc-Fault Circuit Interrupter).
