Brand : Servotech

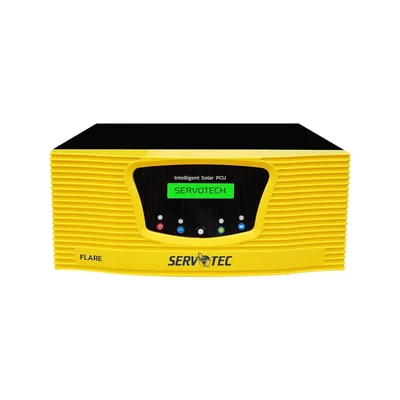

Servotech 4KVA 48V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with Dual Technology Support
SKU : TI-S4-37241
MRP :
₹48950
-
1
+
Delivery By: Jun 18 - Jun 20
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Servotech Inverter
Country of origin: India
Specification
- Brand: Servotech
- Weight (Approx.) : 32 kg
- Model : STF-PCUOGM-5748/S11
- Capacity : 4000VA
- Operating DC Voltage : 48V
- Typical Efficiency : ≥82%
- Switching Element : MOSFET
- Charger Topology : Boost MOSFET
- Dimension (L x W x H) : 430 X 400 X 500 mm
Parameter (Grid)
- Nominal Grid Voltage : 230V
- Nominal Frequency : 50Hz
- Frequency Range : 45-55 Hz ± 1 Hz
- Output PF : 0.7
- Battery Charging Method (5 Stage) : Bulk/Absorption/Float/Equalize
- Grid-Battery Charging : TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery)
- Grid-Battery Charging : TUB (Default) : Float : 13.8V ±0.2V (Each Battery)
- Grid-Battery Charging : SMF : Boost : 14.2V ± 0.2V (Each Battery)
- Grid-Battery Charging : SMF : Float : 13.8V ±0.2V (Each Battery)
- Grid-Battery Charging Current : Enable : Default : 15A±1A
- Grid-Battery Charging Current : Enable : Maximum : 18A±1A
- Grid-Battery Charging Current : Disable : Normal/Boost : Charging Current 0.0A
- Grid Reconnect @Battery Voltage : 11.7V ±0.2V (Each Battery)
- Grid Low Cut Voltage : UPS Mode Enable : 170V±10V
- Grid Low Cut Voltage : UPS Mode Disable : 100V±10V
- Grid Low Cut Recovery : UPS Mode Enable : 180V±10V
- Grid Low Cut Recovery : UPS Mode Disable : 110V±10V
- Grid High Cut Voltage : UPS Mode Enable : 265V ±10V
- Grid High Cut Voltage : UPS Mode Disable : 290V ±10V
- Grid High Cut Recovery : UPS Mode Enable : 255V ±10V
- Grid High Cut Recovery : UPS Mode Disable : 280V ±10V
- Changeover (Batt. to Mains) : UPS Mode Enable/Disable : <6ms/<6ms
- Changeover ((Mains to Batt) : UPS Mode Enable/Disable : <6ms/<30ms
- DG Mode : Disable
Parameters (Battery Mode)
- Output Phase : Single Phase
- Output Waveform : Sinewave
- Nominal Output Voltage : 220V ± 5%
- Max. Output Current : 13.5A
- Discharging Current : 75A±2A
- Nominal Frequency : 50Hz±1
- Battery Low Buzzer : 10.8V ±0.02V (Each Battery)
- Battery Low Cut : 10.5V ±0.02V (Each Battery)
- Battery High Cut : 16.5V ±0.02V (Each Battery)
- Typical Efficiency : ≥84
- Voltage THD : <3% (Linear Load)
- Overload Capacity : UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down
- Overload Capacity : UPS Mode Enable : >110% 1st Time Shut Down after 30sec. Delay
- Overload Capacity : >150% Output Goes Down
- Protection : Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring
Switches and LED Indication
- POWER : Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF
- Inverter/UPS : When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF
- SMF/TUB : When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF
- Hybrid/PCU : When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF
- Only LED : Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected
- Display : Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF
Photovoltaic Input
- Input Voltage Range (Min Max) : 80-260 VDC
- Maximum PV Power Recommended : 4.0 KW
MPPT Based Charging Controller
Switching Element : Mosfet
Controller : ARM-Cortex
Type of Charger : MPPT
Efficiency : 95%
Description
The Servotech 4KVA 48V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter is a high-performance solar inverter designed for off-grid applications. It features MPPT technology for efficient solar energy conversion, pure sine wave output for stable power, and dual technology support for grid and solar compatibility. Ideal for home and commercial use, it ensures reliable backup power with advanced protection features.
Features
:- 4KVA Capacity – Provides robust power backup for various applications.
- 48V System – Optimized for energy conversion and battery efficiency.
- MPPT Technology – Maximizes solar energy utilization for improved performance.
- Pure Sine Wave Output – Ensures stable and smooth power for sensitive appliances.
- Dual Technology Support – Compatible with both grid and solar power sources.
- Advanced Protection – Includes overload, short circuit, and overcharge safeguards.
- Energy-Efficient Operation – Reduces electricity consumption and enhances battery life.
- Smart LCD Display – Allows easy monitoring of system performance.
- Compact & Durable Design – Ensures long-term reliability and easy installation.
