Brand: UTL

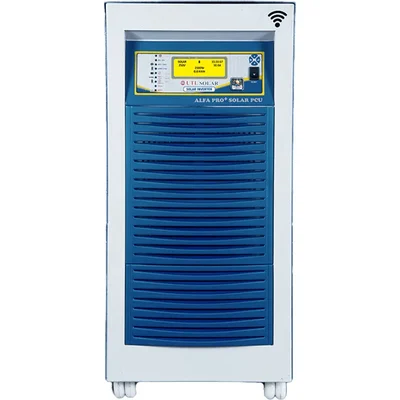

UTL APP8096 - Alfa Pro+ Solar Inverter 7.5kVA 96V Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU: TB-UT-51761
Delivery By: Dec 12 - Dec 14
MRP : ₹119600 ₹92000
23% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹92000 (Including GST)
MRP : ₹119600
23% OFF!
Get Extra ₹1,380 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL APP8096 - Alfa Pro+ Solar Inverter
7.5kVA 96V Solar Inverter
For Home, Office & Shops With 3 Years Warranty
7.5kVA 96V Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 95 kg
- System Rating : 7.5KVA
- Operating DC Voltage : 96V
- Input Voltage Range (Min-Max) : 160 - 450 VDC
- Maximum PV Power Recom : 7.5KW
- Solar Charge Controller Rating : 75A
- Switching Element : IGBT
- Controller : DSP
- Type of Charger : MPPT
- Efficiency : 95%
- Battery Low Buzzer(V) : Batt. Low Cut +0.2
- Battery Low Cut(V) : 10-11.7
- Battery High Cut (V) : SPV Present-SPV CHG. REF +1V for 15Sec, SPV CHG. REF +1.5V for 2Sec
- SPV Absent-SPV CHG. REF for 15Sec, SPV CHG. REF +0.2V for 2Sec
- Battery Charging Voltage by SPV(V) : 13.5 - 16
- Battery Charging Current by SPV(A) : 12 - 60
- Battery Charging Voltage by Grid(V) : 13 - 15
- Battery Charging Current by Grid(A) : 6 - 15
- Grid Charging : Enable
- IT Load : Disable
- Operating Mode : Smart
- Output Voltage Low(V) : 170-190
- Output Voltage High(V) : 250-260
- Input Source : Grid
- Grid Disconnect (Solar Available) : @Solar Charging Voltage Ref Or The Solar Charging Current Ref. For 2 Minutes
- Grid Reconnect (PCU Mode/ Smart Mode)(V) : 11-12
- Switching Element : Mosfet
- Control : PWM
- Nominal Output Voltage(VAC) : 220
- Output Supply Phase : 1Phase, 3Wire
- Output Waveform : Pure Sine Wave
- Nominal Frequency(Hz) : 50.0
- Load Current(A) : 13.5
- Voltage Regulation(%) : 1
- Output Voltage Distortion with 100% Linear Load(%) : <3
- Operating Temperature(C) : 0-50
- Max Relative Humidity@25°C(non condensing)% : 95
- Degree of Protection : IP21
- Data Loggin : 30 Day Data Storage
Description
The UTL Alfa Pro+ (APP8096) is a heavy-duty, commercial-grade Solar Power Conditioning Unit (PCU) rated at 7.5kVA for a high-voltage 96V (eight-battery) system. It features an integrated, high-efficiency rMPPT Solar Charge Controller capable of supporting a massive solar array of up to 7500 Watts (7.5kW), yielding up to 30% more energy than conventional systems. Driven by DSP-based Pure Sine Wave technology, it provides stable, clean power ideal for large homes, hospitals, schools, and commercial establishments like banks and petrol pumps. The PCU maximizes electricity savings by giving absolute priority to solar energy via three user-configurable modes (PCU, Smart, Hybrid) and offers remote monitoring capabilities. It is a robust, high-performance solution backed by a 3-year warranty.
Features
:- Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
- Output Waveform : Modified Sine Wave output
- Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
- Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
- Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
- Load Compatibility : Compatible with IT loads
- Flexibility : Can operate without solar panels, functioning as a regular inverter initially
- Protection : Comprehensive electronic protections
- Display : LED display for operational status and fault indications.
