Brand: LUMINOUS

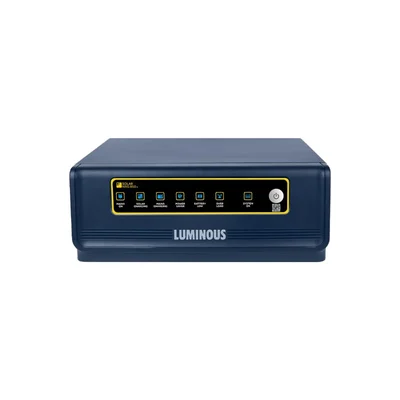

Luminous NXG 850E Solar Grid Tie Inverter With 10 Years Warranty Designed for Residential Use
SKU: TI-LN-51089
Delivery By: Dec 9 - Dec 11
MRP : ₹8000 ₹6599
18% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹6599 (Including GST)
MRP : ₹8000
18% OFF!
Get Extra ₹99 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Luminous NXG 850E Solar Grid Tie Inverter
10 Years Warranty
Designed for Residential Use
Country of origin: India
Specifications
- Brand: LUMINOUS
- Weight (Approx.) : 11 kg
- Nominal Battery Voltage (Vdc) : 12
- Capacity (VA) : 500
- Output Waveform : Sine Wave
Solar PhotoVoltaic Input
- Charge Controller Type : PWM
- Charge Controller Rating : 30A
- Maximum PV Power : 500Wp
- Input Voltage range (Voc) : 18V-25V
Grid Input
- Operating Voltage Range : 90V-290V
Grid Output
- No Load Output : 230V +/- 10V
- Output frequency battery mode : 50 Hz +/- 0.5Hz
- Inverter Efficiency : >80%
User SElectable Switches
- Mode Selections : Solar/Solar+Grid/Grid+Solar
- Battery Type Selections : Tubular/Flat Plate/VRLA
Mains Charging Current
- Solar Mode : 0A*
- Solar + Grid Mode : 10A±2A
- Grid + Solar Mode : 15A±2A
- Battery
- No. of Batteries : 1
- Battery Charging Current : 0A,10A,15A
- Type of Battery Supported : Tubular/Flat Plate/VRLA
Protections
- Overload : >105%
- Protections : Short circuit, Overload, Over temperature, Low Battery, No Load Shutdown
- Indications : Mains Available, Solar Charging, Grid Charging, Power Saving, System On, Low Battery, Overload
Display Indications : LED Indications
- System ON indication : System ON LED Steady
- Mains ON indication : ON Mains LED steady
- Charging ON indication : ON Mains LED steady
- Low battery pre-alarm indication : System ON LED Steady + Battery Low LED Blinking
- Low battery indication : Battery Low LED Steady
- Battery Charged Indication : ON Mains LED steady + CHG. LED Off
- Overload Indication : Overload LED Steady
- Short circuit indication in UPS mode : Overload LED Blinking/(ON Mains & Overload LED) Blinking
- DC overload indication : ON Mains LED + Charge LED Blinking
- Thermistor Open/Short Indication : ON Mains LED & Overlaod LED Steady
- Output Feedback open/Reverse : ON Mains LED & Overlaod LED Blinking
- Battery Charging Through Solar : Solar Charging LED Blinking
- Power Saving Mode : Power Saver Steady + Solar Chg. LED Blinking/Steady
- Battery Charging Through Solar + Mains : ON Mains LED + Charge LED Steady + Solar Charging LED Blinking
- No Load Shutdown : System ON LED Blinking
- Solar Over Current : Solar Charging LED Blink Faster
General
- Net Weight (Kg) : 8.2 kg
- Gross weight (Kg) : 9.7 kg
- Dimensions LxWxH (mm) : 320x302x130 mm
Description
The Luminous NXG 850E is a compact, entry-level Off-Grid Solar Power Conditioning Unit (PCU), perfect for small apartments, homes, and basic power backup needs. It is a single-phase device and functions as a hybrid system, prioritizing solar energy to minimize grid electricity consumption. It features an in-built PWM (Pulse Width Modulation) charge controller to manage the charging from the solar panels. The inverter employs Intelligent Load Sharing (ILS) and Intelligent Solar Optimization Technique (iSOT) to ensure that the maximum possible load is powered by solar energy. With a capacity of 850VA and support for a single 12V battery, it provides a Square Wave/Modified Sine Wave output.
Features
:- Entry-Level Off-Grid Hybrid System : Combines an inverter, solar charge controller (PWM), and grid charger into a single unit for power backup and solar utilization.
- PWM Charge Controller : In-built PWM technology is suitable for small solar arrays and manages battery charging efficiently.
- 850VA Capacity : Ideal for powering essential home loads like fans, lights, and a TV.
- Intelligent Solar Optimization Technique (iSOT) : Prioritizes solar energy, only resorting to battery or grid power when necessary, maximizing savings.
- Three User-Settable Modes : Allows the user to select the preferred energy consumption mode for optimal energy management.
- Square Wave/Modified Sine Wave Output : Provides reliable power for most household appliances (though less ideal for sensitive electronics than Pure Sine Wave).
- Single Battery System : Designed for a 12V nominal battery bank (supports one battery).
- Grid Charging : Capable of charging the battery from the grid, especially during periods of low solar generation or high discharge.LCD Display: Provides essential information on system status, battery level, and solar charging
