Brand: UTL

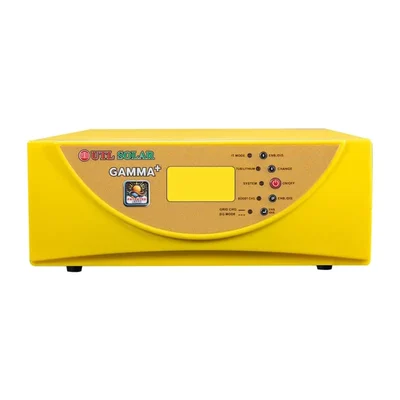

UTL GPP1012 - Gamma+ Solar Inverter 1000VA 12V Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU: TB-UT-51769
Delivery By: Dec 12 - Dec 14
MRP : ₹14600 ₹11200
23% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹11200 (Including GST)
MRP : ₹14600
23% OFF!
Get Extra ₹168 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GPP1012 - Gamma+ Solar Inverter
1000VA 12V Solar Inverter
For Home, Office & Shops With 3 Years Warranty
1000VA 12V Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 14
- System Rating : 1000VA
- Operating DC Voltage : 12V
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Max. Battery Capacity : 200AH
- Operating Mode : Smart mode (Default)
- Optional DG mode : Disable (Default)
- Input Voltage Range (Min - Max) Voc : 15V-53V
- Solar Power Maximum : 1000W
Parameters (Grid)
- Nominal Grid Voltage : 230V 1Φ
- Nominal frequency : 50Hz
- Frequency Range : 47-53Hz ± 1Hz
- Battery Charging Method 3 Stages : Bulk/Absorption/Float
- Default charging mode : Tubular
- Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
- Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
- Grid Charging Current : 10A/15A ± 2A
- Optional Grid charging : Enable
- Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
- Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
- Grid Low Cut Voltage : 170V ± 10V
- Grid Low Cut Recovery : 180V ± 10V
- Grid High Cut Voltage : 265V ± 10V
- Grid High Cut Recovery : 255V ± 10V
- Grid Low Cut Voltage : 100V ± 10V
- Grid Low Cut Recovery : 110V ± 10V
- Grid High Cut Voltage : 290V ± 10V
- Grid High Cut Recovery : 280V ± 10V
- Change Over (Battery to Mains) : <8ms
- Change Over (Mains to Battery) : <12ms
- Change Over (Mains to Battery) : <30ms
Parameters (Inverter)
- Output Phase : 1Φ
- Nominal Output Voltage : 230V
- Output voltage range : 230V ± 10%
- Nominal Frequency : 50 Hz ± 1%
- Max. Output Current : 2.9A
- Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
- Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
- Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery )
- Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery )
- Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery )
- Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery )
- Output Waveform : Sinewave
- Typical Efficiency : >80%
- Voltage Harmonic : <3% (Linear Load)
Parameters (Solar)
- Switching Element : Mosfet
- Type of Charger : MPPT
- SPV Charging Current (Battery) : 18A ± 2A (Def.)
- Battery Charging Method 3 Stages : Bulk/Absorption/Float
- Efficiency : >94%
Description
The UTL Gamma+ (GPP1012) is a premium, off-grid Solar Power Conditioning Unit (PCU) rated at 1000VA for a 12V single battery system. It features an advanced in-built rMPPT Solar Charge Controller (40A), designed to efficiently extract up to 30% more power from solar panels and support up to 1000 Watts of solar PV. This PCU delivers a stable Pure Sine Wave output, giving the highest priority to solar energy to run the load and charge the battery, leading to maximum electricity savings. With a multi-color LCD display and selectable operating modes (PCU, Smart, Hybrid), the Gamma+ offers intelligent, user-configurable energy management and is covered by a 3-year warranty.
Features
:- Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
- Output Waveform : Modified Sine Wave output
- Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
- Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
- Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
- Load Compatibility : Compatible with IT loads
- Flexibility : Can operate without solar panels, functioning as a regular inverter initially
- Protection : Comprehensive electronic protections
- Display : LED display for operational status and fault indications
