Brand: UTL

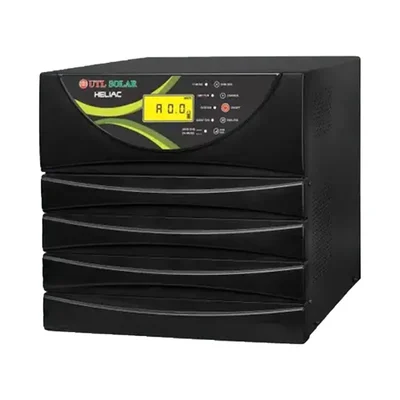

UTL HELIAC 3550 -24V Inverter 3000VA 24V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU: TB-UT-51749
Delivery By: Dec 12 - Dec 14
MRP : ₹20300 ₹15600
23% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹15600 (Including GST)
MRP : ₹20300
23% OFF!
Get Extra ₹234 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL HELIAC 3550 -24V Inverter
3000VA 24V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty
3000VA 24V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 30 kg
- System Rating : 3000VA
- Operating DC Voltage : 24V
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Max. Battery Capacity : 200AH
- Operating Mode : Smart mode (Default)
- Optional DG mode : Disable (Default)
- Solar Power Maximum : 2000W
Parameters (Grid)
- Nominal Grid Voltage : 230V 1Φ
- Nominal frequency : 50Hz
- Frequency Range : 47-53Hz ± 1Hz
- Battery Charging Method 3 Stages : Bulk/Absorption/Float/Equalize
- Default charging mode : Tubular
- Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
- Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
- Grid Charging Current : 12A/15A ± 2A
- Optional Grid charging : Enable
- Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
- Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
- Grid Low Cut Voltage : 170V ± 10V
- Grid Low Cut Recovery : 180V ± 10V
- Grid High Cut Voltage : 265V ± 10V
- Grid High Cut Recovery : 255V ± 10V
- Grid Low Cut Voltage : 100V ± 10V
- Grid Low Cut Recovery : 110V ± 10V
- Grid High Cut Voltage : 290V ± 10V
- Grid High Cut Recovery : 280V ± 10V
- Change Over (Battery to Mains) : <5ms
- Change Over (Mains to Battery) : <12ms
- Change Over (Mains to Battery) : <30ms
Parameters (Inverter)
- Output Phase : 1Φ
- Nominal Output Voltage : 230V ± 8%
- Nominal Frequency : 50 Hz ± 1%
- Max. Output Current : 4.3A
- Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
- Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
- Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery)
- Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery)
- Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery)
- Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery)
- Output Waveform : Sinewave
- Typical Efficiency : >85%
- Voltage Harmonic : <3% (Linear Load)
Parameters (Solar)
- Switching Element : Mosfet
- Type of Charger : PWM
- SPV Charging Voltage (Boost) : 14.7V ± 0.2V (Each Battery)
- SPV Charging Voltage (Boost) : 13.9V ± 0.2V (Each Battery)
- Efficiency : >95%
- System Rating : 1500VA
- Operating DC Voltage : 24V
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Max. Battery Capacity : 200AH
- Operating Mode : Smart mode (Default)
- Optional DG mode : Disable (Default)
- Solar Power Maximum : 1500W
Description
The Utl 3000VA/24V Offgrid Pwm Solar Pcu Home, Model Heliac 3550-24V, is A High-Performance Solar Power Conditioning Unit Designed for Reliable & Efficient Off-Grid Solar Energy Management. this Advanced Pcu Offers A Robust 3000Va Capacity, Making It Suitable for Powering A Variety of Home Appliances & Essential Devices in Off-Grid Setups. Equipped with A 24V Battery System, It Ensures Stable & Uninterrupted Power Supply By Converting Solar Energy Into Usable Electricity with Optimal Efficiency. the Integrated Pulse Width Modulation (Pwm) Technology Enhances the Charging Process, Extending Battery Life & Improving Overall System Performance. Featuring User-Friendly Controls & A Comprehensive Lcd Display, the Heliac 3550-24V Provides Real-Time Monitoring of Solar Generation, Battery Status, & System Performance, Ensuring Seamless Operation & Ease of Use. Additionally, Its Rugged Design & Reliable Build Quality Ensure Durability & Longevity, Even in Challenging Environmental Conditions. this Pcu is Ideal for Homeowners Looking to Harness Solar Energy for Sustainable Living While Maintaining A Dependable Power Supply for Everyday Needs. with Its Combination of High Capacity, Efficient Charging, & User-Centric Features, the Utl 3000VA/24V Offgrid Pwm Solar Pcu Home Stands Out As A Premium Choice for Off-Grid Solar Solutions.
Features
:- Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
- Output Waveform : Modified Sine Wave output
- Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
- Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
- Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
- Load Compatibility : Compatible with IT loads
- Flexibility : Can operate without solar panels, functioning as a regular inverter initially
- Protection : Comprehensive electronic protections
- Display : LED display for operational status and fault indications
