Brand : UTL

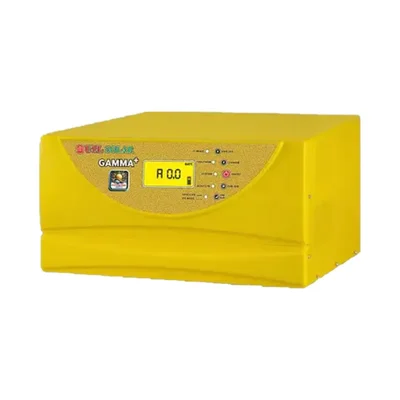

UTL GPP2000 - Gamma+ Solar Inverter 1500VA 24V Solar Inverter For Home, Office & Shops With 3 Years Warranty
SKU : TB-UT-51762
MRP : ₹17500
₹13400
23% OFF!
-
1
+
1408 people have viewed this recently
Get Extra ₹201 OFF on Prepaid Orders
Estimated Delivery By: Mar 11 - Mar 13
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
UTL GPP2000 - Gamma+ Solar Inverter
1500VA 24V Solar Inverter
For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specification
  • Brand: UTL
  • Weight (Approx.) : 14 kg
  • System Rating : 1500VA
  • Operating DC Voltage : 24V
  • Switching Element :  MOSFET
  • Charger Topology : Boost Mosfet
  • Max. Battery Capacity : 200AH
  • Operating Mode : Smart mode (Default)
  • Optional DG mode : Disable (Default)
  • Input Voltage Range (Min - Max) Voc : 30V-106V
  • Solar Power Maximum : 1500W

Parameters (Grid)
  • Nominal Grid Voltage : 230V 1Φ
  • Nominal frequency : 50Hz
  • Frequency Range : 47-53Hz ± 1Hz
  • Battery Charging Method 3 Stages : Bulk/Absorption/Float
  • Default charging mode : Tubular
  • Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
  • Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
  • Grid Charging Current : 10A/15A ± 2A
  • Optional Grid charging : Enable
  • Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
  • Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
  • Grid Low Cut Voltage : 170V ± 10V
  • Grid Low Cut Recovery : 180V ± 10V
  • Grid High Cut Voltage : 265V ± 10V
  • Grid High Cut Recovery : 255V ± 10V
  • Grid Low Cut Voltage : 100V ± 10V
  • Grid Low Cut Recovery : 110V ± 10V
  • Grid High Cut Voltage : 290V ± 10V
  • Grid High Cut Recovery : 280V ± 10V
  • Change Over (Battery to Mains) : <8ms
  • Change Over (Mains to Battery) : <12ms
  • Change Over (Mains to Battery) : <30ms

Parameters (Inverter)
  • Output Phase : 1Φ
  • Nominal Output Voltage : 230V
  • Output voltage range : 230V ± 10%
  • Nominal Frequency : 50 Hz ± 1%
  • Max. Output Current : 4.3A
  • Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
  • Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
  • Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery )
  • Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery )
  • Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery )
  • Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery )
  • Output Waveform : Sinewave
  • Typical Efficiency : >82%
  • Voltage Harmonic : <3% (Linear Load)

Parameters (Solar)
  • Switching Element : Mosfet
  • Type of Charger : MPPT
  • SPV Charging Current (Battery) : 18A ± 2A (Def.)
  • Battery Charging Method 3 Stages : Bulk/Absorption/Float
  • Efficiency : >94%
Description
The UTL Gamma+ (GPP2000) is a high-performance, off-grid Solar Power Conditioning Unit (PCU) rated at 1500VA for a 24V dual battery system. 1 It features a high-efficiency in-built rMPPT Solar Charge Controller (40A) that maximizes power extraction (up to >94% efficiency), resulting in up to 30% more energy generation from solar panels.This PCU delivers a stable Pure Sine Wave output and supports a substantial solar array of up to 1500 Watts (W). 4 With a multi-color LCD display and three selectable modes (PCU, Smart, Hybrid), it ensures intelligent solar priority for maximum electricity savings and is secured by a 3-year warranty.

Features

 :
  • Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
  • Output Waveform : Modified Sine Wave output
  • Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
  • Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
  • Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
  • Load Compatibility : Compatible with IT loads
  • Flexibility : Can operate without solar panels, functioning as a regular inverter initially
  • Protection : Comprehensive electronic protections
  • Display : LED display for operational status and fault indications
