Brand: UTL

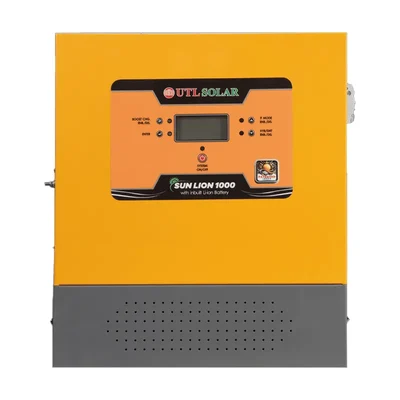

UTL Sun Lion 1000(Inbuilt Battery) Solar Inverter 800VA 12.8V For Home, Office & Shops With 3 Years Warranty
SKU: TB-UT-51764
Delivery By: Jan 31 - Feb 2
MRP : ₹29200 ₹22400
23% OFF!
Delivery By: Jan 31 - Feb 2 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹22400 (Including GST)
MRP : ₹29200
23% OFF!
Get Extra ₹336 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Sun Lion 1000(Inbuilt Battery) Solar Inverter
800VA 12.8V For Home, Office & Shops With 3 Years Warranty
800VA 12.8V For Home, Office & Shops With 3 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 10 kg
- System Rating : 800VA
- Operating DC Voltage : 12.8V
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Max. Battery Capacity : 50AH, 640Wh
- Operating Mode : HYBRID
Parameters (Grid)
- Nominal Grid Voltage : 230V 1Φ
- Nominal frequency : 50Hz
- Battery Charging Method 3 Stages : Bulk/Absorption/Float/Equalize
- Grid - Battery Charging Voltage : 13.8V ± 0.2V
- Grid Charging Current : 15A/18A ± 2A
- Grid Reconnect @ Battery Voltage (TUB) : 12.4V ± 0.2V
- Grid Low Cut Voltage : 170V ± 10V
- Grid Low Cut Recovery : 180V ± 10V
- Grid High Cut Voltage : 265V ± 10V
- Grid High Cut Recovery : 255V ± 10V
- Change Over (Battery to Mains) : <8ms
- Change Over (Mains to Battery) : <15ms
Parameters (Inverter)
- Output Phase : 1Φ
- Nominal Output Voltage : 230V ± 8%
- Nominal Frequency : 50 Hz ± 1%
- Max. Output Current : 2.5A
- Battery Low Buzzer : 11.9V ± 0.2V
- Battery Low Cut : 11.6V ± 0.2V
- Battery Low Buzzer : 14.5V ± 0.2V
- Typical Efficiency : >80%
Parameters (Solar)
- Switching Element : Mosfet
- Type of Charger : rMPPT
- SPV Charging Voltage (Boost) : 13.9V ± 0.2V (Each Battery)
- Efficiency : >95%
Description
The UTL Sun LiON 1000 is a compact, all-in-one Solar Power Conditioning Unit (PCU) with an 800VA capacity, perfect for essential power backup in homes, small offices, and shops. It features a high-performance, inbuilt 50Ah LiFePO4 (Lithium Iron Phosphate) battery (12.8V nominal voltage), offering a long life (up to 10 years/3500 cycles) and zero maintenance.
Features
:- Inbuilt Solar Charge Controller : Ensures up to 30% more energy generation from solar panels compared to PWM controllers
- Output Waveform : Modified Sine Wave output
- Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
- Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
- Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
- Load Compatibility : Compatible with IT loads
- Flexibility : Can operate without solar panels, functioning as a regular inverter initially
- Protection : Comprehensive electronic protections
- Display : LED display for operational status and fault indications
