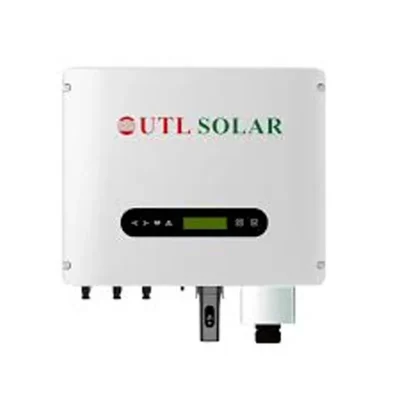

UTL GT-5GX-T2(Pro) - Grid Tie Three Phase 5KW Solar Inverter For Home, Office & Shops With 5 Years Warranty
SKU: TI-UG-55167
Delivery By: Jan 19 - Jan 21
MRP : ₹54200 ₹48500
11% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹48500 (Including GST)
MRP : ₹54200
11% OFF!
Get Extra ₹728 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-5GX-T2(Pro) - Grid Tie Three Phase 5KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 10 kg
Input Side :
- Max. DC Input Power (kW) : 6.5
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 140
- MPPT Operating Range (V) : 120 - 850
- Max. DC Input Current (A) : 13+13
- Max. Short Circuit Current (A) : 19.5+19.5
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 1
Output Side :
- Rated Output Power (kW) : 5
- Max. Active Power (kW) : 5.5
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V, 230/400V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 3
- Rated AC Grid Output Current (A) : 7.6 / 7.2
- Max. AC Output Current (A) : 8.3 / 8
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.3 %
- Euro Efficiency : 97.5 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 330 x457.5 x185
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <30 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL GT-5GX-T2 (Pro) is a 5kW three-phase grid-tie inverter that converts DC power from solar panels into high-quality AC power for direct use or export to the grid. Featuring a transformer-less design and advanced MPPT technology, it ensures up to 99.9% tracking efficiency. Built with an IP65 weatherproof rating, it is suitable for outdoor installations and comes with a 5-year standard warranty for long-term reliability. This 5kW inverter is engineered to maximize energy harvest from solar panels while providing a seamless connection to the utility grid, making it an ideal choice for reducing electricity bills in homes, offices, and shops.
Features
:- High Efficiency : MPPT efficiency of >99.8% and maximum conversion efficiency of 98.2% ensure minimal power loss.
- Three-Phase Stability : Designed specifically for three-phase electrical systems, ensuring balanced power distribution across all phases.
- Dual MPPT Trackers : Optimized for roofs with different orientations, allowing for maximum power generation throughout the day.
- Double Surge Protection : Equipped with AC & DC Side Type-II 20kA SPD to protect the system against lightning and voltage surges.
- Smart Monitoring : Built-in Wi-Fi/GPRS support allows for remote monitoring of energy production via the UTL Solar App.
- Wide Voltage Range : Low startup voltage and a wide AC voltage range (160V to 290V per phase) ensure the system starts earlier and runs longer.
- Weatherproof Design : IP65 certified housing allows for safe installation in outdoor environments, resisting dust and rain.
- Grid Export Control : Includes power export limiting features to comply with local utility regulations.
- Low Noise : Natural cooling technology keeps noise emission levels below 25dB, making it virtually silent.
