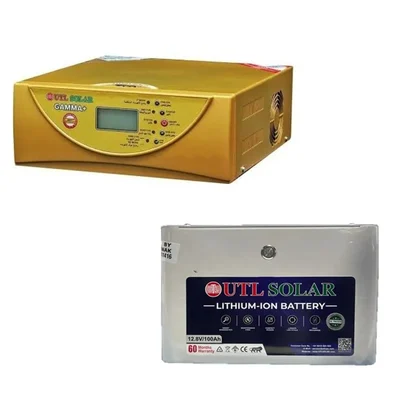

UTL Gamma+ GPP 1012 Solar Inverter With 12.8V 100Ah Lithium Battery For Home, Office & Shops

Brand: UTL

UTL Gamma+ GPP 1012 Solar Inverter With 12.8V 100Ah Lithium Battery For Home, Office & Shops

Name: UTL Gamma+ GPP 1012 Solar Inverter With 12.8V 100Ah Lithium Battery For Home, Office & Shops
Brand: UTL
SKU: TB-UT-51747
Price: 37690 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TB-UT-51747

MRP : ₹45000 ₹37690

16% OFF!

18031 people have viewed this recently

Get Extra ₹565 OFF on Prepaid Orders

Estimated Delivery By: Jul 31 - Aug 2

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹37690 (Including GST)

MRP : ₹45000

16% OFF!

Get Extra ₹565 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

UTL Gamma+ GPP 1012 Solar Inverter With 12.8V 100Ah Lithium Battery

Country of origin: India

Brand: UTL
Weight (Approx.) : 16 kg

INVERTER :

Parameters

Model No. : GPP1012
System Rating : 1000VA
Operating DC Voltage : 12v
Switching Element : MOSFET
Charger Topology : Boost Mosfet
Max. Battery Capacity : 200Ah
Input Voltage Range (Min-Max) Voc : 15V-53V
Solar Power Maximum : 1000w
Solar Panel Recommended (Watt) : 165x5P, 200X5P (335x3P*) (400/440/540X2P")

Operating Mode & Optional DG mode

SMART/PCU/HYBRID : Smart mode (Default)
Enable/Disable : Disable (Default)

Parameters (Grid)

Nominal Grid Voltage : 230v 1ɸ
Nominal frequency : 50Hz
Frequency Range : 47-53Hz±1Hz
Battery Charging Method 3 Stages : Bulk/Absorption/Float
Default charging mode : TUB (LITHIUM) : Tubular
Grid-Battery Charging Voltage (LITHIUM) : Boost/Float : 13.8V ±0.2V
Grid Charging Current : Normal/Boost : 10A/15A+2A
Optional Grid charging : Enable
Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V±0.2V
Grid Low Cut Voltage - IT Mode Enable : 170V ± 10V
Grid Low Cut Recovery - IT Mode Enable : 180V±10V
Grid High Cut Voltage - IT Mode Enable : 265V ±10V
Grid High Cut Recovery - IT Mode Enable : 255V ± 10V
Grid Low Cut Voltage - IT Mode Disable : 100V ± 10V
Grid Low Cut Recovery - IT Mode Disable : 110V ±10V
Grid High Cut Voltage - IT Mode Disable : 290V±10V
Grid High Cut Recovery - IT Mode Disable : 280V±10V
Change Over (Battery to Mains) - IT Mode Enable/Disable : <8ms

Change Over (Mains to Battery)

IT Mode Enable : <12ms
IT Mode Disable : <30ms

Grid Battery Charging Voltage (TUB)

Boost : 14.5V ±0.2V
Float : 13.8V ±0.2V

Parameters (Inverter)

Output Phase : 1ɸ
Nominal Output Voltage : 230V
Output voltage range : 230V ± 10%
Nominal Frequency : 50 Hz ± 1%
Max. Output Current : 2.9A
Battery Low Buzzer (TUB) : 10.8V ±0.2V (Each Battery)
Battery Low Cut (TUB) : 10.5V ±0.2V (Each Battery
Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery)
Battery Low Buzzer (LITHIUM) : 11.9V ±0.2V (Each Battery)
Battery Low Cut (LITHIUM) : 11.6V ±0.2V (Each Battery)
Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery)
Output Waveform : Sinewave
Typical Efficiency : >80%
Voltage Harmonic : <3% (Linear Load)
Motor 1 HP : NA
Protection : Overload, Battery Low, Battery High, Output Short Ckt, Battery Reverse (Fuse Blown), Over Heat @90°C ±10°C, Over/Under frequency, I/P High, I/P Low, SPV High, SPV Low
LED Indication : System ON, (IT mode, TUB/LITHIUM, Boost Chg, DG mode, Grid Chg.) Enable/Disable
Switches (Micro) : System ON/OFF, UP, Down, Back, Enter (For LCD Calibration)
Display (Multi Color) : Battery Voltage, Charging Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load %, Battery Graph, Overheat, SPV Current, Operating Mode (HYB/PCU/SMT), Solar energy (KWH)

Over Load Capacity

IT Mode Enable : >100% After 30 sec delay (with Alarm) 1st Time Shut Down
IT Mode Disable : >100% After 30 sec delay (with alarm) 3Time Auto Reset, 4th Time Shut Down
Note: 1HP Motor Load Run for 15min with alarm (1 Sec ON, 5 Sec OFF) in 2600 Model.
>150% Output Goes Down

Parameters (Solar)

Switching Element : Mosfet
Type of Charger : MPPT
Battery Charging Method 3 Stages : Bulk/Absorption/Float
Efficiency : >94%
SPV Charging Current (Battery) : 18A 2A (Def.)
SPV Charging Voltage(LITHIUM) - Boost/Float : 13.9V ±0.2V (Each Battery)

SPV Charging Voltage (TUB)

Boost : 14.7V ±0.2V (Each Battery)
Float : 14.2V ± 0.2V (Each Battery)

Parameters (Environment)

Operating Temperature : 0-45°C
Cooling : Fan
Max. Relative Humidity @ 25°C (non Condensing) : 95%
Noise 1 meter : 50dB
Standard Compliance : IP21
System Weight (KG) : 12.4
Dimension (LXWXH)mm : 327.8x305.5x116

BATTERY :

Nominal Voltage : 12.8 V
Battery configuration : 45 1P-100Ah
BMS Smart BMS
Cell type & chemistry Prismatic/LifePo4(LFP)
Rated capacity 100Ah
Nominal energy (25°C @ 25°C) 1280WH
Usage application Energy storage/inverter application
Battery operating voltage range 10.5V~15V
Continuous charging current 35 Amp
Maximum charging current 40 Amp
Continuous discharging current 80Amp
Max peak discharge current Up to 150Amp
Max Charging Time 2Hr @ 50Amp
Max Discharging Time 2Hr @ 50Amp
Operating temperature range for charging (0°C-45°C)
Operating temperature range for Discharge (-20°C-60°C)
Recommended Operating range of SOC 10% to 90%
Communication interface UART/BLE
SOC required for long period storage & transportation 50%-60% SOC
Dimension MM (L*W*H) 310 * 415 * 165±2MM
Inbuilt Display : Yes
ON/OFF Switch : Yes
Life cycle : ≥3500 cycle
Battery efficiency : ≥98% @ 27°C
Maximum module in parallel : NA
Inbuilt Automatic Protection System : Yes
Automatic low voltage protection : Yes
Automatic over voltage protection : Yes
Automatic over charge/discharge current protection : Yes
Automatic over charge/discharge temp protection : Yes

You are looking at an excellent, premium off-grid power setup. The UTL Gamma+ GPP 1012 paired with a 12.8V 100Ah Lithium (LiFePO4) battery is a massive leap forward from traditional bulky lead-acid inverter systems. It is highly compact, exceptionally efficient, and perfect for homes, small offices, and retail shops that want a "fit-and-forget" setup with absolutely zero battery maintenance. Here is a complete breakdown of what this system offers, its technical specifications, and what you can realistically run on it.

Features

rMPPT Technology : It features a built-in 40A rMPPT (Rapid Maximum Power Point Tracking) charge controller. This extracts up to 30% more power from your solar panels compared to standard PWM inverters, meaning your battery charges faster even in low-sunlight conditions.
Solar Panel Support : You can connect up to 1000W to 1100W of solar panels (Voltage range: 15V – 53V).
Pure Sine Wave, which is completely safe for sensitive electronics like laptops, TVs, and Wi-Fi routers.
Zero Maintenance : No more checking water levels, worrying about acid spills, or dealing with toxic fumes.
Extended Lifespan : Traditional tubular lead-acid batteries last about 3 to 5 years. This lithium battery offers 3000 to 3500 life cycles, meaning it can easily last up to 10 years.
In-built BMS (Battery Management System) : This internal computer protects the battery from overcharging, deep discharging, short circuits, and overheating.
Fast Charging : It charges incredibly fast. If you have enough solar or grid power pushing through, this battery can be fully charged in just about 2 to 3 hours.
Energy Capacity : A 12.8V 100Ah battery gives you roughly 1280 Watt-hours of energy storage.
