Brand: Generic (Imported)

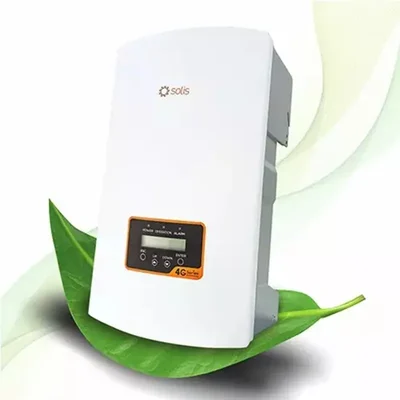

Solis 3P-20K-4G Three Phase Solar Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-S3-63937
Delivery By: Feb 26 - Feb 28
MRP : ₹127400 ₹98000
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹98000 (Including GST)
MRP : ₹127400
23% OFF!
Get Extra ₹1,470 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solis 3P-20K-4G Three Phase Solar Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 20 kg
- Model : Solis - 3P-20K-4G
Input DC :
- Recommended max. PV power : 24kW
- Max. input voltage : 1000V
- Rated voltage : 600V
- Start-up voltage : 180V
- MPPT voltage range : 160-850V
- Max. input current : 22A/22A
- Max. short circuit current : 34.3A/34.3A
- MPPT number/Max. input strings number : 2/4
Output AC :
- Rated output power : 20kW
- Max. apparent output power : 22kVA
- Max. output power : 22kW
- Rated grid voltage : 3/N/PE, 220/380V, 230/400V
- Rated grid frequency : 50/60Hz
- Rated grid output current : 30.4A/28.9A
- Max. output current : 31.8A
- Power Factor : >0.99 (0.8 leading - 0.8 lagging)
- THDi : <1.5%
Efficiency :
- Max. efficiency : 98.7%
- EU efficiency : 98.1%
General Data :
- Dimensions (W x H x D) : 310 x 563 x 219 mm
- Topology : Transformerless
- Self consumption : <1W (night)
- Operating ambient temperature range : -25 ~ +60°C
- Relative humidity : 0-100%
- Ingress protection : IP65
- Cooling concept : Natural convection
- Max. operation altitude : 4000m
Description
The Solis 3P-20K-4G is a high-performance three-phase string inverter engineered for reliability and efficiency in demanding environments. Perfectly scaled for large residential setups, small retail shops, and commercial PV stations, this 4G series model balances a compact footprint with industrial-grade power. It features advanced dual MPPT (Maximum Power Point Tracking) algorithms to maximize energy harvest even on complex rooftops with varying orientations, ensuring a faster return on investment for business owners and homeowners alike.
Features
:- Industrial-Grade Efficiency: Boasts a maximum efficiency of 98.7%, ensuring minimal energy loss during the conversion process.
- Dual MPPT Design: Equipped with two independent MPPT trackers with a wide voltage range (160V–850V) for flexible installation and optimized performance in partial shade.
- Intelligent Grid Management: Includes an integrated Export Power Manager (EPM) and high-precision monitoring to comply with local grid requirements and prevent power backflow.
- Safety First: Features multiple protection levels, including AFCI protection (optional) to proactively reduce fire risks caused by DC arc faults.
- Robust & Compact: Designed with an IP65-rated enclosure for indoor or outdoor durability, and a transformerless topology that reduces weight for easier wall-mounting.
- Smart Monitoring: Fully compatible with WiFi, GPRS, and RS485 interfaces for real-time data tracking via the SolisCloud app.
