Brand: Generic (Imported)

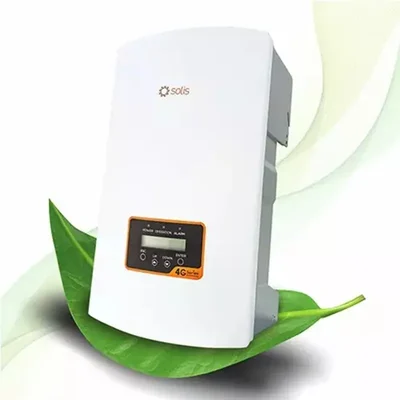

Solis 3P-8K-4G Three Phase Solar Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-S3-63935
Delivery By: Feb 26 - Feb 28
MRP : ₹75400 ₹58000
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹58000 (Including GST)
MRP : ₹75400
23% OFF!
Get Extra ₹870 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solis 3P-8K-4G Three Phase Solar Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 18 kg
- Model : Solis - 3P-8K-4G
- Recommended max. PV power : 9.6kW
- Max. input voltage : 1000V
- Rated voltage : 600V
- Start-up voltage : 180V
- MPPT voltage range : 160-850V
- Max. input current : 11A/11A
- Max. short circuit current : 17.2A/17.2A
- MPPT number/Max. input strings number : 2/2
- Rated output power : 8kW
- Max. apparent output power : 8.8kVA
- Max. output power : 8.8kW
- Rated grid voltage : 3/N/PE, 220/380V, 230/400V
- Rated grid frequency : 50/60Hz
- Rated grid output current : 12.2A/11.5A
- Max. output current : 12.7A
- Power Factor : >0.99 (0.8 leading - 0.8 lagging)
- THDi : <1.5%
- Max. efficiency : 98.7%
- EU efficiency : 98.1%
- Dimensions (W x H x D) : 310 x 563 x 219 mm
- Topology : Transformerless
- Self consumption : <1W (night)
- Operating ambient temperature range : -25 ~ +60°C
- Relative humidity : 0-100%
- Ingress protection : IP65
- Cooling concept : Natural convection
- Max. operation altitude : 4000m
Description
The Solis 3P-8K-4G is a high-performance, three-phase grid-tied solar inverter designed to bridge the gap between residential efficiency and commercial reliability. Engineered by Ginlong Solis, this 4G series inverter is a preferred choice for large homes, small shops, and light industrial units. It features a dual MPPT (Maximum Power Point Tracking) design, which optimizes energy harvest even on roofs with multiple angles or partial shading. With its compact, transformerless design and IP65-rated protection, it offers a space-saving and durable solution for both indoor and outdoor installations.
Features
:- High Efficiency: Boasts a maximum efficiency of 98.7%, ensuring minimal energy loss during the DC to AC conversion process.
- Dual MPPT Design: Equipped with two independent MPPT trackers to maximize power generation from different solar panel orientations.
- Wide Voltage Range: Features an ultra-low startup voltage (180V) and a wide MPPT operating range (160V-850V) for longer daily generation hours.
- Grid Compatibility: Ultra-low harmonic distortion (THDi < 1.5%) ensures a clean, stable connection to the utility grid.
- Smart Monitoring: Supports real-time remote monitoring via WiFi, GPRS, or LAN, accessible through the SolisCloud app.
- Robust Protection: Includes integrated DC switches, surge protection, and multiple safety layers to safeguard the system against electrical faults.
