Brand: Generic (Imported)

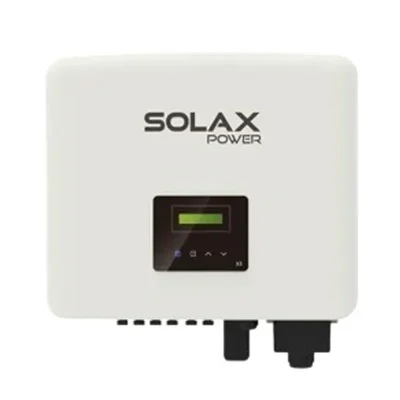

Solax X1-HYBRID-6.0-LV Solar Off Grid Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-SX-63953
Delivery By: Feb 26 - Feb 28
MRP : ₹124500 ₹95700
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹95700 (Including GST)
MRP : ₹124500
23% OFF!
Get Extra ₹1,436 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solax X1-HYBRID-6.0-LV Inverters
Solar Off Grid Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 24 kg
- Model Name : X1-HYBRID-6.0-LV
PV INPUT :
- Max. recommended PV array power : 12.0 kWp
- Max. PV input voltage : 600 V
- Rated PV input voltage : 360 V
- Operation voltage range : 70 = 550V
- MPPT voltage range : 70 = 550V
- Start-up voltage : 90 V
- No. of MPP trackers/Strings per MPP tracker : 2(1/1)
- Max. Input current per MPPT : 16A/16 A
- Max input short circuit current per MPPT : 20A/20 A
AC INPUT & OUTPUT (ON-GRID) :
- Rated output power : 6000 W
- Max. output apparent power : 6600 VA
- Max. output continuous current : 28.6 A
- Rated AC voltage : 1/N/PE, 220/230/240 V
- Max. AC input apparent power : 9200 VA
- Max. AC input current : 40 A
- Nominal AC frequency : 50 Hz/60 Hz
- THDI (rated power) : <2%
BATTERY :
- Battery type : Lithium/Lead-acid
- Battery voltage range : 80-480 V
- Max. charge/discharge current : 30 A
EPS (OFF-GRID) OUTPUT (WITH BATTERY) :
- Rated EPS output voltage, frequency : 230 V, 50 Hz/60 Hz
- Rated EPS output power : 6000VA
- Peak EPS output power : 9000VA, 10s
- Switchover time : <10 ms
EFFICIENCY :
- Max efficiency : 97.6%
- European efficiency : 97.0%
ENVIRONMENT LIMIT :
- Ingress protection : IP65
- Operation temperature range : -35-60°C (45°C derating)
- Max operation altitude : 3000 m
- Relative humidity : 4-100% RH (condensing)
Description
The SolaX X1-Hybrid-6.0-LV is a high-performance, single-phase low-voltage battery storage inverter designed to maximize energy independence. It is an ideal solution for modern homes, small retail shops, and light commercial setups that require a reliable power supply even during grid outages. By intelligently managing solar production, battery storage, and grid interaction, it ensures that your critical loads stay powered while minimizing electricity costs.
Features
:- EPS (Emergency Power Supply): Provides seamless backup power during blackouts with a changeover time of less than 10ms.
- High Efficiency: Optimized for maximum energy harvest from PV arrays even in low-light conditions.
- Dual MPPT Trackers: Allows for flexible roof installations (e.g., East-West orientations) to maximize sunlight exposure.
- Remote Monitoring: Full integration with the SolaX Cloud/App for real-time tracking of energy production and consumption.
- Compact & IP65 Rated: Robust design suitable for both indoor and outdoor installations, resisting dust and water.
- Scalable Storage: Easily pairs with low-voltage lithium batteries to expand capacity as energy needs grow.
