Brand: Generic (Imported)

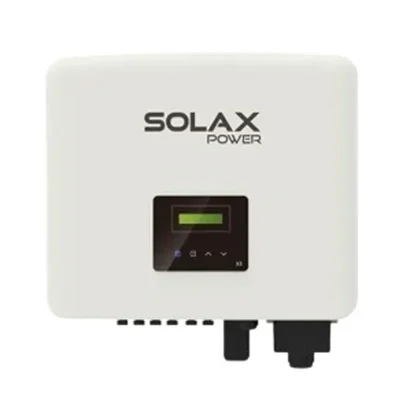

Solax X3-PRO-10K-G2 Solar Off Grid Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-SX-63950
Delivery By: Feb 26 - Feb 28
MRP : ₹98800 ₹76000
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹76000 (Including GST)
MRP : ₹98800
23% OFF!
Get Extra ₹1,140 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solax X3-PRO-10K-G2 Inverters
Solar Off Grid Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 25 kg
- Model Name : X3-PRO-10K-G2
DC INPUT :
- Max. PV array input power [Wp] : 15000
- Max. PV input voltage [V] : 1100
- Startup voltage [V] : 200
- Nominal input voltage [V] : 650
- MPP tracker voltage range [V] : 160-980
- No. of MPP trackers / Strings per MPP tracker : 2/2
- Max. PV input current [A] : 32/32
- Isc PV Array Short Circuit current [A] : 40/40
AC OUTPUT :
- Rated AC output power [W] : 10000
- Rated AC output current [A] : 15.2/14.5
- Max. AC output apparent power [VA] : 11000
- Max. AC output current [A] : 16
- Nominal AC voltage/AC voltage range [V] : 220/380V, 230/400V, 3/N/PE, 3/PE; 95-285V
- Nominal AC frequency/AC frequency range [Hz] : 50/60 ; ±5
- Power Factor range : 0.8 leading~0.8 lagging
- THDi (Rated power) [%] : <3
SYSTEM DATA :
- Max. eciency [%] : 98.20
- Euro. eciency [%] : 97.70
- Standby consumption [W] @Night : <3
- Ingress protection : IP66
- Operating ambient temperature range [°C] : -30~+60
- Max. operation altitude [m] : 4000
- Relative humidity [%] : 0-100
- Typical noise emission [dB] : <35
- Storage temperature [°C] : -30~+60
- Dimensions (W×H×D) [mm] : 482 x 417 x 186 mm
- Cooling concept : Natural cooling
- Communication interfaces : USB / RS485 / DRM, Optional: Meter
- Optional monitoring dongle : Pocket WiFi/LAN/4G
- Display : 2 x LED + LCD (16 x 2) / APP
Description
The SolaX X3-PRO-10K-G2 is a high-performance, three-phase string inverter designed to bridge the gap between high-end residential needs and commercial efficiency. Part of the second generation (G2) Pro Series, this inverter is engineered for reliability, featuring a high power density and a compact design that makes it a favorite for professional installers.
Features
:- High Efficiency: Boasts a maximum efficiency of 98.5% with a wide MPPT voltage range (160V–980V) for optimal energy harvest.
- Smart Management: Features built-in export power control and intelligent load management (compatible with heat pumps and EV chargers).
- Robust Protection: Includes integrated Type II Surge Protection Devices (SPD) on both AC and DC sides, plus optional Arc Fault Circuit Interrupter (AFCI) support.
- Future-Proof Design: Supports 150% DC oversizing and 110% AC overloading, allowing you to maximize your solar array's potential.
- Weatherproof & Silent: IP66 ingress protection for harsh environments and natural cooling (no internal fans) for near-silent operation.
- Remote Monitoring: Real-time 24/7 monitoring available via WiFi, LAN, or 4G options through the SolaX Cloud.
