Brand: UTL

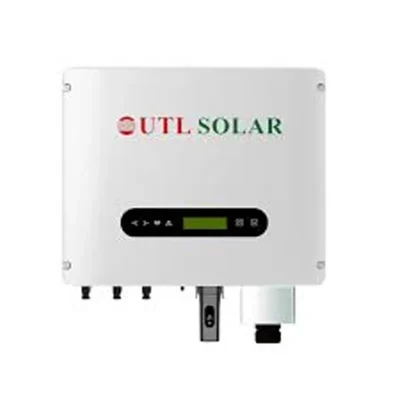

UTL GT-10-GXT2(Pro) - Grid Tie Three Phase 10KW Solar Inverter For Home, Office & Shops With 5 Years Warranty
SKU: TI-UG-55177
Delivery By: Jan 19 - Jan 21
MRP : ₹60000 ₹56200
6% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹56200 (Including GST)
MRP : ₹60000
6% OFF!
Get Extra ₹843 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-10-GXT2(Pro) - Grid Tie Three Phase 10KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 10 kg
Input Side :
- Max. DC Input Power (kW) : 13
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 140
- MPPT Operating Range (V) : 120 - 850
- Max. DC Input Current (A) : 13+13
- Max. Short Circuit Current (A) : 19.5+19.5
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 1
Output Side :
- Rated Output Power (kW) : 10
- Max. Active Power (kW) : 11
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V, 230/400V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 3
- Rated AC Grid Output Current (A) : 15.2/14.5
- Max. AC Output Current (A) : 16.7/15.9
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.3 %
- Euro Efficiency : 97.5 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 330 x457.5 x185
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <30 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL 10kW Three-Phase Grid-Tie Inverter is a premium solar solution that allows you to power your premises using solar energy while remaining connected to the utility grid. It features a sleek, compact design with a transformerless topology that maximizes energy yield and reduces weight. It is ideal for those looking to lower electricity bills through net metering, as it seamlessly exports surplus power back to the grid. It is designed for high-efficiency energy conversion in homes, offices, and commercial establishments. It is part of UTL's advanced GXT2 series, known for its transformerless design, high MPPT efficiency, and robust protection features.
Features
:- High Efficiency : Boasts a peak MPPT efficiency of up to 99.9% and overall efficiency of 98.3% for maximum energy harvesting.
- Dual MPPT Trackers : Allows for better performance even with different roof orientations or partial shading.
- Rugged Protection : Rated IP65 for outdoor installation, providing protection against dust and water.
- Built-in Safety : Equipped with Type-II AC & DC Surge Protection (SPD) to safeguard against lightning and voltage spikes.
- Remote Monitoring : Integrated Wi-Fi/RS485 support for real-time performance tracking via the UTL Solar App.
- Low Maintenance : Transformerless design and natural/intelligent cooling ensure a silent, long-lasting operation with minimal upkeep.
- User-Friendly Display : Features a 1602 LCD screen for local monitoring of parameters like power generation and grid status.
- Wide Voltage Range : Low startup voltage (140V) and wide MPPT operating range (120V–850V) ensure the system starts earlier and works later into the evening
