Brand: UTL

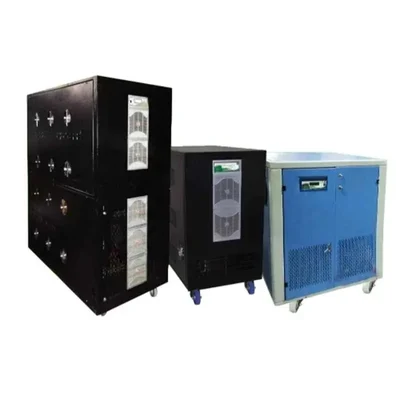

UTL Off Grid Star Online Solar PCU 30360 (3-3)Output,30kVA 360V Solar Inverter For Home, Office & Shop(5 Years Warranty)
SKU: TI-UO-55265
Delivery By: Jan 18 - Jan 20
MRP : ₹400000 ₹375500
6% OFF!
Delivery By: Jan 18 - Jan 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹375500 (Including GST)
MRP : ₹400000
6% OFF!
Get Extra ₹5,633 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Off Grid Star Online Solar PCU 30360 (3-3)Output
30kVA 360V Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shop
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 110 kg
- Voltage Range : 400V± 20%
- Phase : 3 phase, four wire
- Frequency : 50Hz ± 10%
- Power Factor : 0.94
- Solar : 30KW
- VOC (min-max) : 540-810
- VMP : 430-730
- Configuration 72 Cell : 6 string of 16 panel
- Switching Device : IGBT
- Switching Frequency : 16KHZ
- Type of charger : MPPT
- Peak Efficiency (DC to DC) : 96%
- Voltage (Ph-Ph) : 380/400V/415V ± 1% Configurable by LCD Display
- Load Current Per Phase : 34.8A
- Efficiency (AC to AC) : >88% @ Full Load
- Frequency : 50 Hz
- Waveform : Pure Sin Wave
- Voltage Harmonics : <3 % ( Linear Load )
- Overload Capacity : 100-110%@10Min, 100-120%@2Min; 120-150%@30s; 150-200%@2s; 200-300%@1s; 300-400%@250ms; >400%@20ms
- Crest Factor : 3:1
- Voltage Regulation : ±1%
- Frequency Regulation : ±.05 Hz
- Storage Relative Humidity : 0-95%
- Degree of Protection : IP 20
- Dimension (LxWxH) : 990 x 660 x 889 mm
Description
The UTL Star Online PCU 30360 is an advanced DSP-based 3-phase input and 3-phase output solar inverter.3 Unlike standard off-grid inverters, its Online Topology ensures zero transfer time (4$0\text{ ms}$), making it perfect for sensitive electronic equipment.5 It features a built-in rMPPT (Rapid Maximum Power Point Tracking) charge controller that extracts up to 30% more power from solar panels compared to conventional chargers.6 With a robust design and a 5-year warranty, it offers a reliable, eco-friendly energy solution for large-scale applications. Operating on a 360V DC bus, this 30kVA system is built to handle heavy inductive loads like air conditioners, industrial machinery, and complex server setups in homes, offices, and shops.
Features
:- True Online Topology : Provides a constant, stabilized pure sine wave output with zero switching time between solar, battery, and grid.
- rMPPT Technology : Patented technology ensures maximum solar harvest even in low-light or fluctuating weather conditions.
- 3-Phase (3-In, 3-Out) : Balanced power distribution across three phases, ideal for commercial machinery and large buildings.
- High Surge Capability : Can handle up to 300% surge load, allowing it to start heavy motors and industrial compressors easily.
- Intelligent Logic : Automatically prioritizes Solar Power > Battery > Grid to minimize electricity bills.
- Advanced Protection : Built-in SPD (Surge Protection Device) for lightning protection, along with short-circuit, over-load, and high-temperature safeguards.
- Monitoring & Control : Ethernet-based remote monitoring (optional) and a multi-function LCD for real-time data tracking.
- Galvanic Isolation : Integrated isolation transformer for enhanced safety and equipment protection.
