Brand: UTL

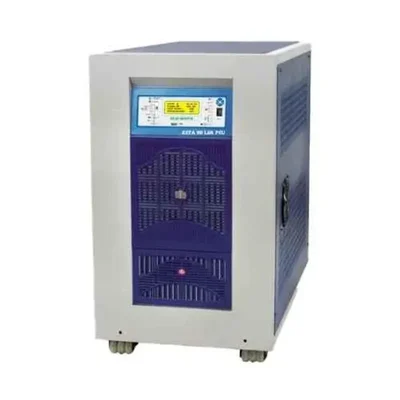

UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output,10kVA 240V Solar Inverter For Home, Office & Shop(5 Years Warranty)
SKU: TI-UO-55253
Delivery By: Jan 19 - Jan 21
MRP : ₹170000 ₹159900
6% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹159900 (Including GST)
MRP : ₹170000
6% OFF!
Get Extra ₹2,399 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output
10kVA 240V Solar Inverter For Home, Office & Shop
5 Years Warranty
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 50 kg
- Voltage Range : 400V±20%
- Phase : 3
- Frequency : 50Hz±20%
- Power Factor : >0.92
- Charger Topology : Buck
- Solar : 10kW
- Voc (min-max) : 400V - 740V
- Vmp : 288V - 660V
- Configurable (72 Cell) : 16 panel in series (2 strings)
- Switching Devices : IGBT
- Switching Freq. : 16 KHz
- Type of Charger : PWM with MPPT
- Peak Efficiency (DC-DC) : 96%
- Battery Low Buzzer : Battery Low Cut + 0.2
- Battery Low Cut : 10-11.7V
- Battery High Cut (Charger) : Battery Volt By SPV + 0.7
- Battery Charging Voltage by Grid : 13-14.5V
- Battery Charging Current by Grid : 3-12A
- Battery Charging Voltage by SPV : 13.5-15V
- Battery Charging Current by SPV : 5-24A
- Grid Charger Reconnect : Enable /Disable
- Output Voltage Low Cut : 170-190V
- Output Voltage High Cut : 250-260V
- Voltage : 380V/400V/415V ±1% (3phase 4 wire)
- Load Current : 11.6A
- Efficiency (AC – AC) : >90%@Full Load
- Frequency : 50Hz
- Waveform : Pure Sine Wave
- Voltage Harmonics : <3% Linear Load
- Overload Capacity : 100 to 110%-10 Mins ; 110 to 120%-2 Mins ; 120 to 150%-30 Secs ; 150 to 200%-2 Secs ; 200 to 300%-1secs ; 300 to 400%-250msecs ; >400%-20-30msecs
- Crest Factor : 3:1
- Voltage Harmonics : ±1%
- Frequency Regulation : ±0.05Hz
- Alarm : Battery Low, battery High, Overload
- Extended Battery Charging : Yes
- Caster Wheels : Yes
- Operating Environment : 0-50° C
- Operating Relative Humidity : (5%-95%) Non-condensed
- Storage Environment : 0-75°C
- Storage Relative Humidity : 0-95%
- Degree of Protection : IP20
- Remote Monitoring : Ethernet (Optional)
- Dimension (LXWXH) : 762 x 406 x 685 mm
Description
The UTL Mars Online Solar PCU 10240 (10kVA/240V) is a next-generation off-grid solar inverter that utilizes Double Conversion Technology to provide a consistent, regulated pure sine wave output. Built for homes, large offices, and industrial shops, it creates an "electrical firewall" between the grid and your sensitive equipment, protecting against surges, sags, and frequency instability. With a 10kW solar panel capacity and built-in MPPT (Maximum Power Point Tracking) technology, it prioritizes renewable energy to drastically reduce electricity bills while ensuring 100% uninterrupted power. It features a unique 3-Phase Input and 3-Phase Output configuration, making it ideal for large-scale setups where balanced power distribution is critical.
Features
:- Capacity : 10kVA power rating with a 240V battery bank requirement.
- 3-Phase (3-3) Configuration : Designed for balanced 3-phase input and 3-phase output for industrial loads.
- MPPT Technology : Advanced rMPPT charge controller extracts up to 30% more power from solar panels compared to PWM.
- Double Conversion : Eliminates all power disturbances (noise, spikes, and harmonics) by converting AC to DC and back to clean AC.
- Pure Sine Wave Output : Ensures the safety of sensitive electronics like servers, medical equipment, and high-end motors.
- Configurable Priority : Select between Solar/Battery/Grid or Solar/Grid/Battery modes based on your needs.
- High Surge Capability : Can handle up to 300% surge for starting heavy inductive loads like air conditioners or heavy machinery.
- Remote Monitoring : Optional Ethernet-based monitoring to track performance via the web or mobile.
- Robust Warranty : Comes with a 5-year comprehensive warranty for long-term peace of mind.
