Brand: Polycab

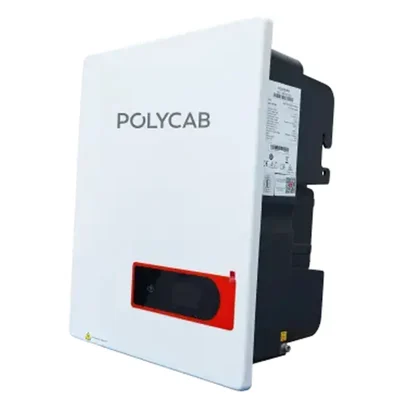

Polycab PSIS-5K0 Grid Tie Inverter, 5kW Single Phase Inverter, For Residential & Commercial Use With 8 Years Warranty
SKU: TI-PP-62521
Delivery By: Jan 31 - Feb 2
MRP : ₹43300 ₹33200
23% OFF!
Delivery By: Jan 31 - Feb 2 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹33200 (Including GST)
MRP : ₹43300
23% OFF!
Get Extra ₹498 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Polycab PSIS-5K0 Grid Tie Inverter
5kW Single Phase Inverter
For Residential & Commercial Use
With 8 Years Warranty
Country of origin: India
Specifications
- Brand: Polycab
- Weight (Approx.) : 9 kg
- Model : PSIS-5K0
- Rating : 5 kW
Input (PV) :
- Max. Input Voltage : 550V
- Max. PV Configuration (STC) : 150%
- Rated / Nominal Input Voltage : 360V
- Max. Input Current : 20A
- Max. Short Circuit Current : 30A
- Start Input Voltage : 50V
- MPPT Operating Voltage Range : 40-540Vdc
- Full Power MPPT Voltage : 260V-500V
- Max. Number of PV Strings : 1
- No. of MPPTs : 1
Output (Grid) :
- Rated AC Active Power : 5,000W
- Max. AC Apparent Power : 5,500VA
- Max. AC Active Power (PF=1) : 5,500W
- Max. AC Output Current : 25A
- Rated AC Voltage : 220V/230V/240V, L+N+PE
- AC Voltage Range : 160V-300V (Adjustable)
- Rated Grid Frequency : 50Hz/60Hz
- Grid Frequency Range : 45Hz-55Hz / 55Hz-65Hz (Adjustable)
- THDi : <3% (Rated Power)
- DC Current Injection : <0.5%ln
- Power Factor : > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG)
Efficiency :
- Max. Efficiency : 97%
- Europe Efficiency : 96.3%
General :
- Topology : Transformer-less
- IP Rating : IP66
- Night Self Consumption : <1W
- Cooling : Natural Cooling
- Operating Temperature Range : -25°C to 60°C
- Relative Humidity Range : 0-100%
- Max. Operating Altitude : 4000m
- Noise(typical) : 30dB
- Dimensions (WxHxD) : 297 x 282 x 145 mm
- Warranty : 8 Years
Description
The Polycab PSIS-5K0 (5kW) is a transformerless on-grid inverter that bridges the gap between solar PV panels and the utility grid. It features a sleek, lightweight aluminum body with an IP66 rating, making it highly resistant to dust and water for outdoor installations. Engineered for reliability, it supports 150% DC overloading and comes with integrated safety protections, ensuring your solar investment is safe and productive for years to come. Part of Polycab’s advanced solar range, it is built to maximize energy harvest through high-efficiency conversion and wide MPPT voltage ranges, all while maintaining a compact, user-friendly design.
Features
:High Efficiency : Boasts a maximum efficiency of up to 98.2%, ensuring minimal energy loss during the DC-to-AC conversion.
Intelligent Maintenance : Integrated WiFi and a dedicated mobile app allow for real-time remote monitoring and system health checks.
Wide MPPT Range : Features an ultra-wide MPPT operating range (70V - 550V), allowing the system to start generating power early in the morning and continue late into the evening.
Robust Protection: Built-in Type II DC/AC surge protection, anti-islanding, and short-circuit protection.
Warranty : Comes with a standard 8-year warranty (often extendable), reflecting its "Make in India" durability.
Compact Design : Designed for one-person installation with a weight of approximately 6.5kg to 9kg.
