Brand: UTL

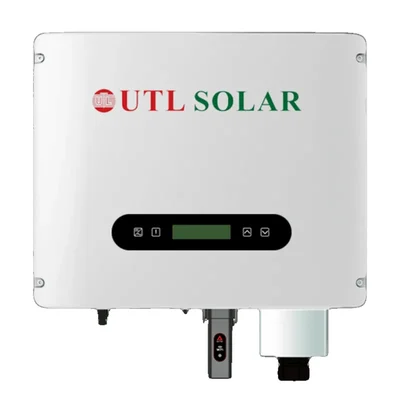

UTL Grid Tie Single Phase 5KW Solar Inverter For Home, Office & Commercial Purpose With 5 Years Warranty
SKU: TI-UG-63660
Delivery By: Feb 25 - Feb 27
MRP : ₹43600 ₹33500
23% OFF!
Delivery By: Feb 25 - Feb 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹33500 (Including GST)
MRP : ₹43600
23% OFF!
Get Extra ₹503 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Grid Tie Single Phase 5KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Commercial Purpose
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 10 kg
- Brand: UTL
- Weight (Approx.) : 10 kg
Input Side :
- Max. DC Input Power (kW) : 6.5
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 140
- MPPT Operating Range (V) : 120-850
- Max. DC Input Current (A) : 13+13
- Max. Short Circuit Current (A) : 19.5+19.5
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 1
Output Side :
- Rated Output Power (kW) : 5
- Max. Active Power (kW) : 5.5
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 1
- Rated AC Grid Output Current (A) : 7.6/7.2
- Max. AC Output Current (A) : 8.3/8
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.3 %
- Euro Efficiency : 97.5 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 330 x 457.5 x 185 mm
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <35 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL 5KW Single Phase Grid-Tie Solar Inverter (typically from the Gigax or F-Series) is an advanced, transformerless energy solution designed to slash electricity bills for residential and commercial spaces. By converting DC power from solar panels into high-quality AC power, it seamlessly synchronizes with the utility grid. With its battery-free operation and net-metering compatibility, this inverter is a cost-effective choice for those looking to export surplus energy and earn grid credits.
Features
:- High Efficiency: Equipped with advanced MPPT technology achieving up to 99% tracking efficiency for maximum power harvest.
- Grid-Tie Convenience: Operates without the need for expensive battery banks, feeding excess power directly into the government grid.
- Smart Monitoring: Integrated Wi-Fi/GPRS support allows you to track real-time energy generation via the UTL Solar App.
- Robust Protection: Features IP65-rated weatherproof housing and built-in Type-II SPDs (Surge Protection Devices) for both AC and DC sides.
- User-Friendly Design: Compact, wall-mountable aesthetic with an LCD for easy status monitoring and low noise emission (<25dB).
- 5-Year Warranty: Comes with a standard 5-year warranty (often extendable up to 10 years) for long-term peace of mind.
