Brand: UTL

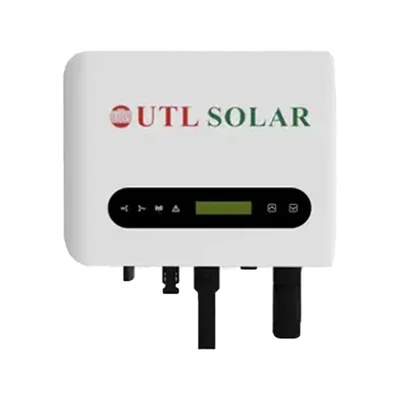

UTL Grid Tie Single Phase 3.3KW Solar Inverter For Home, Office & Commercial Purpose With 5 Years Warranty
SKU: TI-UG-55224
Delivery By: Jan 19 - Jan 21
MRP : ₹22500 ₹19100
15% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹19100 (Including GST)
MRP : ₹22500
15% OFF!
Get Extra ₹287 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Grid Tie Single Phase 3.3KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Commercial Purpose
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 5 kg
Input Side :
- Max. DC Input Power (kW) : 4.29
- Max. DC Input Voltage (V) : 550
- Start-up DC Input Voltage (V) : 80
- MPPT Operating Range (V) : 70- 500
- Max. DC Input Current (A) : 13
- Max. Short Circuit Current (A) : 19.5
- No. of MPP Trackers : 1
- No. of Strings per MPP Tracker : 1
Output Side :
- Rated Output Power (kW) : 3.3
- Max. Active Power (kW) : 3.63
- Nominal Output Voltage/Range (V) : L/N/PE 220/230V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 1
- Rated AC Grid Output Current (A) : 15/14.3
- Max. AC Output Current (A) : 16.4/15.7
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 97.5 %
- Euro Efficiency : 97.3 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 280 x 272.5 x 184 mm
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <35 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL 3.3KW Grid-Tie Single Phase Solar Inverter is a high-efficiency solution designed to slash electricity bills for homes, small offices, and commercial spaces. By converting DC power from solar panels into clean AC power and syncing directly with the government utility grid, it allows users to utilize free solar energy and export any surplus through a Net-Metering system.
Features
:- High MPPT Efficiency : Boasts over 99% MPPT efficiency, ensuring maximum energy harvest even in low-light conditions.
- Wide Input Range : Features a low startup voltage and a wide AC voltage range (160V to 290V) to handle fluctuating power conditions.
- Smart Monitoring : Built-in Wi-Fi support allows you to track real-time power generation and system health via the UTL Solar App.
- Robust Protection : Equipped with Type-II AC & DC Surge Protection Devices (SPD) and an IP65-rated weatherproof enclosure for outdoor installations.
- Grid Compliance : Includes a Power Export Limiting feature to prevent unauthorized feeding into the grid where net-metering is not yet active.
- User-Friendly Design : Transformer-less technology makes it lightweight, silent (<25dB noise), and highly durable.
