Brand: Polycab

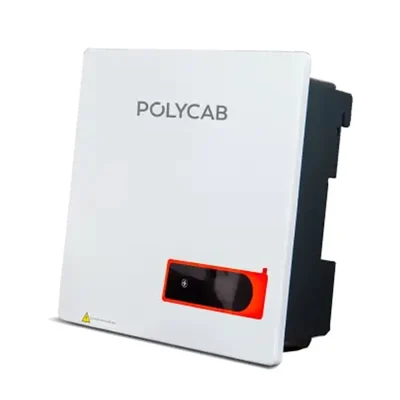

Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6kW Three Phase-1MPPT, For Residential & Commercial Use With 8 Years Warranty
SKU: TI-PP-62531
Delivery By: Feb 26 - Feb 28
MRP : ₹78700 ₹60100
24% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹60100 (Including GST)
MRP : ₹78700
24% OFF!
Get Extra ₹902 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Polycab PSIT-6K-SM1R2 Grid Tie Inverter
6kW Three Phase-1MPPT
For Residential & Commercial Use
With 8 Years Warranty
Country of origin: India
Specifications
- Brand: Polycab
- Weight (Approx.) : 17 kg
- Model : PSIT-6K SM1R2
- Rating : 6 kW
Input (PV) :
- Max. Input Voltage : 1100V
- Max. PV Configuration (STC) : 150%
- Rated / Nominal Input Voltage : 620V
- Max. Input Current : 20A
- Max. Short Circuit Current : 30A
- Start Input Voltage : 180V
- MPPT Operating Voltage Range : 160-1000V
- Full Power MPPT Voltage : 190V-500V
- Max. Number of PV Strings : 1
- No. of MPPTs : 1
Output (Grid) :
- Rated AC Active Power : 6,000W
- Max. AC Apparent Power : 6,600VA
- Max. AC Active Power (PF=1) : 6,600W
- Max. AC Output Current : 3*10.1A
- Rated AC Voltage : 380V/400V/415V, 3W+N+PE
- AC Voltage Range : 260V- 510V (Adjustable )
- Rated Grid Frequency : 50Hz/60Hz
- Grid Frequency Range : 45Hz-55Hz / 55Hz-65Hz (Adjustable)
- THDi : <3% (Rated Power)
- DC Current Injection : <0.5% (Rated Current)
- Power Factor : > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG)
Efficiency :
- Max. Efficiency : 97.8%
- Europe Efficiency : 96.5%
General :
- Topology : Transformer-less
- IP Rating : IP66
- Night Self Consumption : <1W
- Cooling : Natural Cooling
- Operating Temperature Range : -25°C to 60°C
- Relative Humidity Range : 0-100%
- Max. Operating Altitude : 4000m
- Noise(typical) : <30dB
- Dimensions (WxHxD) : 398 x 460 x 190 mm
- Warranty : 8 Years
Description
The Polycab PSIT-6K-SM1R2 is a high-performance, three-phase grid-tie inverter designed to bridge the gap between efficiency and durability for both residential and small-scale commercial solar installations. With a 6kW capacity and a robust 8-year warranty, it provides a reliable solution for reducing electricity bills by feeding solar power directly into the grid.
Features
:- High Efficiency: Optimized for maximum energy harvest with advanced MPPT (Maximum Power Point Tracking) technology.
- Three-Phase Stability: Designed for balanced power distribution, making it ideal for modern homes and commercial units with three-phase connections.
- Compact & Durable: Built with a lightweight yet rugged design to withstand diverse environmental conditions.
- Safety First: Features integrated protection against overvoltage, short circuits, and DC reverse polarity.
- User-Friendly Monitoring: Supports smart monitoring interfaces to track real-time power generation and system health.
- Long-Term Reliability: Comes with an industry-leading 8-year warranty, ensuring peace of mind and a faster return on investment.
