Brand: UTL

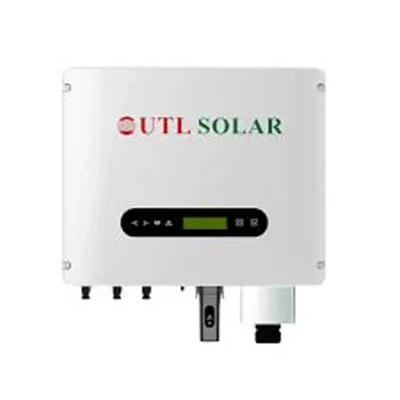

UTL GT-25-GXT2(Pro) - Grid Tie Three Phase 25KW Solar Inverter For Home, Office & Shops With 5 Years Warranty
SKU: TI-UG-55212
Delivery By: Jan 19 - Jan 21
MRP : ₹105000 ₹95500
9% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹95500 (Including GST)
MRP : ₹105000
9% OFF!
Get Extra ₹1,433 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-25-GXT2(Pro) - Grid Tie Three Phase 25KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 20 kg
Input Side :
- Max. DC Input Power (kW) : 32.5
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 250
- MPPT Operating Range (V) : 200 - 850
- Max. DC Input Current (A) : 30+30
- Max. Short Circuit Current (A) : 64+64+64
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 2
Output Side :
- Rated Output Power (kW) : 25
- Max. Active Power (kW) : 27.5
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V, 230/400V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 3
- Rated AC Grid Output Current (A) : 37.9/36.2
- Max. AC Output Current (A) : 41.7/39.9
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.6 %
- Euro Efficiency : 97.8 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 362 x 527 x 220
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <40 dB
- Cooling Concept : Smart cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL GT-25-GXT2(Pro) is a high-performance 25kW Three-Phase Grid-Tie (On-Grid) Solar Inverter specifically engineered for commercial and heavy residential applications. It is an ideal choice for large homes, office complexes, and retail shops looking to significantly reduce electricity bills through net metering. By converting DC power from solar panels into high-quality AC power and exporting the surplus back to the utility grid, this inverter ensures a high return on investment.
Features
:- Transformerless Design : Enhances efficiency (up to 98.7%) and makes the unit more compact and lightweight.
- Wide MPPT Voltage Range : Dual MPPT trackers with a wide range ensure maximum power harvesting even in varying weather conditions.
- Advanced Protection : Built-in Type II Surge Protection Devices (SPD) for both AC and DC sides, along with anti-islanding and ground fault protection.
- High Overload Capacity : Supports PV overload up to 30%, allowing for more panel installation to maximize generation during low-light periods.
- Smart Monitorin : Integrated Wi-Fi support for remote monitoring via the UTL Solar App, providing real-time data on generation and savings.
- Robust Build : IP65-certified weatherproof enclosure, suitable for outdoor installation and high-temperature environments (up to 65°C).
- Warranty : Comes with a standard 5-year warranty.
