Brand: UTL

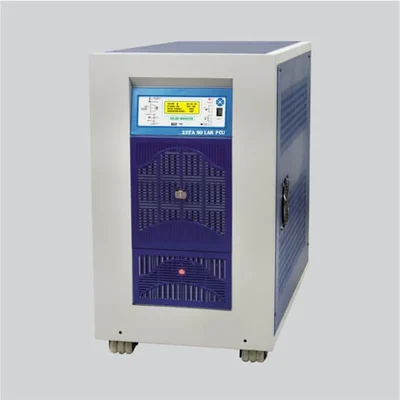

UTL Zeta Pro Solar Hybrid PCU 50240, Three Phase 50kVA 240V Solar Inverter, Built-in Wi-Fi SUPPORT (5 Year Warranty)
SKU: TI-UZ-61985
Delivery By: Jan 19 - Jan 21
MRP : ₹582900
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹582900 (Including GST)
Get Extra ₹8,744 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Zeta Pro Solar Hybrid PCU 50240
Three Phase 50kVA 240V Solar Inverter
Built-in Wi-Fi SUPPORT (5 Year Warranty)
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 400 kg
Parameters :
- System Rating (KVA) : 50
- Operating DC Voltage (VDC) : 240
Photovoltaic Input :
- Input open circuit voltage range(Min-Max) (Voc) : 400-720
- Maximum PV Power Recommended/No. of Charge Controller : 50KW/1
- Switching Element/Type of Charger/Solar Charge Controller Rating : IGBT/MPPT/200A
- Peak Efficiency (DC to DC) : 95%
Grid parameter :
- Input Voltage (R.Y.B w.r.t. N) Nominal (VAC) : 220V/Phase
- Supply Phase & Connection : 3Phase/4Wire
- Switching Element/Bypass Element/Grid charger Efficiency (AC-DC) : IGBT/SCR/>85%
- Grid Low Cut Volt. Range RYB wrt N (IT Mode Enable/Disable) (VAC) : NA/120-175
- Grid High Cut Volt. Range R-Y-B wrt N (IT Mode Enable/Disable) (VAC) : NA/260-280
- Grid Charger : Enable
- Grid Export Mode : Disable
- IT Load : Disable
Battery Parameter :
- Battery Low Buzzer : Batt Low Cut+0.2
- Battery Low Cut : 11
- Battery Charging Voltage Range with SPV (VDC) : 16
- Battery Charging Current Range with SPV (A) : 14.7
- Battery Charging Voltage Range with Grid (VDC) : 14.5
- Battery Charging Current Range with Grid (A) : 18
- Operation Mode : Smart
- Grid Reconnect Range (PCU Mode | Smart Mode) : 11.5
Description
The UTL Zeta Pro 50kVA is a sophisticated 3-Phase in / 3-Phase out hybrid solar inverter built on DSPIC-based Pure Sine Wave technology. It features an integrated rMPPT (Rapid Maximum Power Point Tracking) charge controller that extracts up to 30% more power from solar panels compared to standard PWM controllers. With built-in Wi-Fi monitoring, users can track performance in real-time. Designed for a 20-year product life, it comes backed by a 5-year comprehensive warranty. Combining the reliability of a traditional PCU with modern grid-interactive technology, it is an ideal solution for industries, hospitals, and large commercial establishments looking for maximum efficiency and energy savings.
Features
:- rMPPT Technology : Patented Rapid MPPT technology ensures high-speed tracking and maximum energy harvest even in fluctuating weather.
- Grid-Interactive : Supports grid export mode, allowing you to feed excess solar energy back to the utility grid.
- Built-in Wi-Fi & Data Logging : Remote monitoring via Wi-Fi with an internal data logger that stores up to 31 days of performance history.
- Multiple Working Modes : Configurable Smart, PCU, and Hybrid modes to prioritize solar, battery, or grid power based on user preference.
- Advanced Protection : Comprehensive safety features including reverse AC voltage protection, phase sequence protection, and thermal management.
- User-Friendly Interface : Large 20x4 LCD display for easy configuration of AC and DC parameters (output voltage, charging currents, etc.).
- High Efficiency : Delivers up to 95% efficiency with an IGBT-based switching element for smooth power conversion.
