Brand: UTL

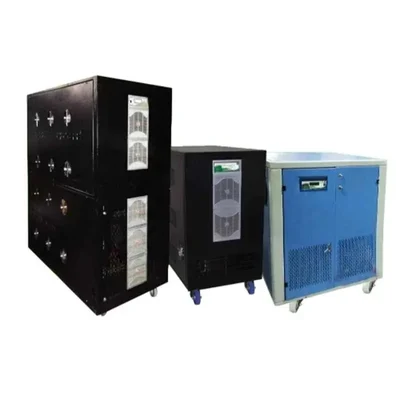

UTL Off Grid Star Online Solar PCU 80360 (3-3)Output,80kVA 360V Solar Inverter For Home, Office & Shop(5 Years Warranty)
SKU: TI-UO-55297
Delivery By: Jan 19 - Jan 21
MRP : ₹975000 ₹959800
2% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹959800 (Including GST)
MRP : ₹975000
2% OFF!
Get Extra ₹14,397 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Off Grid Star Online Solar PCU 80360 (3-3)Output
80kVA 360V Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shop
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 110 kg
- Voltage Range : 400V± 20%
- Phase : 3 phase, four wire
- Frequency : 50Hz ± 10%
- Power Factor : 0.94
- Solar : 80KW
- VOC (min-max) : 540-810
- VMP : 430-730
- Configuration 72 Cell : 16 string of 16 panel
- Switching Device : IGBT
- Switching Frequency : 16KHZ
- Type of charger : MPPT
- Peak Efficiency (DC to DC) : 96%
- Voltage (Ph-Ph) : 380/400V/415V ± 1% Configurable by LCD Display
- Load Current Per Phase : 92.57A
- Efficiency (AC to AC) : >88% @ Full Load
- Frequency : 50 Hz
- Waveform : Pure Sin Wave
- Voltage Harmonics : <3 % ( Linear Load )
- Overload Capacity : 100-110%@10Min, 100-120%@2Min; 120-150%@30s; 150-200%@2s; 200-300%@1s; 300-400%@250ms; >400%@20ms
- Crest Factor : 3:1
- Voltage Regulation : ±1%
- Frequency Regulation : ±.05 Hz
- Storage Relative Humidity : 0-95%
- Degree of Protection : IP 20
- Dimension (LxWxH) : 1244 x 863 x1752 mm
Description
The UTL Star Online Solar PCU 80360 (3-3 Output) is a heavy-duty, industrial-grade power conditioning unit designed for high-capacity applications. With its 80kVA rating and 360V DC system, it is engineered to run critical loads in large homes, schools, hospitals, petrol pumps, and industrial workshops. Utilizing advanced double-conversion technology and rMPPT solar charging, it ensures an uninterrupted, stable power supply even in areas with severe power fluctuations.
Features
:- True Online Double Conversion : Provides a constant, regulated output voltage, acting as a firewall for sensitive electronics.
- rMPPT Technology : Features a built-in Maximum Power Point Tracking (MPPT) charge controller that is up to 30% more efficient than standard controllers.
- 3-Phase Input & 3-Phase Output : Designed specifically for 3-phase machinery and balanced load distribution across larger premises.
- DSP Based Design : Advanced Digital Signal Processing ensures high reliability and a pure sine wave output.
- Smart Monitoring : Supports Ethernet-based monitoring for real-time tracking of battery status, solar generation, and load performance.
- Rugged Protection : Comprehensive shielding against short circuits, input under/over-voltage, lightning, and surges via SPD.
- Configurable Settings : User-friendly LCD for adjusting parameters like battery charging current, voltage, and source priority (Solar/Grid/Battery).
- Long-Term Reliability : Backed by a 5-year warranty
