Brand: UTL

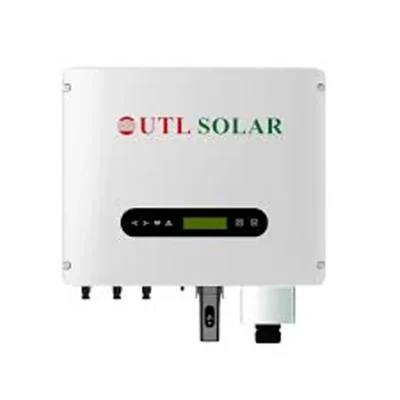

UTL GT-8-GXT2(Pro) - Grid Tie Three Phase 8KW Solar Inverter For Home, Office & Shops With 5 Years Warranty
SKU: TI-UG-55175
Delivery By: Jan 19 - Jan 21
MRP : ₹60000 ₹55000
8% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹55000 (Including GST)
MRP : ₹60000
8% OFF!
Get Extra ₹825 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-8-GXT2(Pro) - Grid Tie Three Phase 8KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 10 kg
Input Side :
- Max. DC Input Power (kW) : 10.4
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 140
- MPPT Operating Range (V) : 120 - 850
- Max. DC Input Current (A) : 13+13
- Max. Short Circuit Current (A) : 19.5+19.5
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 1
Output Side :
- Rated Output Power (kW) : 8
- Max. Active Power (kW) : 8.8
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V, 230/400V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 3
- Rated AC Grid Output Current (A) : 12.1/11.6
- Max. AC Output Current (A) : 13.3/12.8
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.3 %
- Euro Efficiency : 97.5 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 330 x457.5 x185
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <30 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL GT-8-GXT2(Pro) is a sophisticated grid-tie (on-grid) solution that allows users to harness solar power efficiently without the need for batteries. It converts DC power from solar panels into high-quality AC power that synchronizes seamlessly with the government utility grid. Equipped with Dual MPPT (Maximum Power Point Tracking), it ensures optimal performance even under varying weather conditions or complex roof layouts. Its IP65-certified weatherproof housing makes it suitable for outdoor installations, and its advanced monitoring features allow users to track energy generation in real-time via the UTL Solar App. This 8kW inverter is part of UTL’s advanced F3 series, engineered to maximize energy harvest while maintaining a sleek, durable, and transformer-less design.
Features
:- High Efficiency : Boasts a peak efficiency of up to 98.6% and MPPT efficiency of >99.9% for maximum energy output.
- Dual MPPT Tracker : Features two independent MPP trackers, allowing for flexible panel installation and better yield in shaded conditions.
- Smart Remote Monitoring : Built-in support for Wi-Fi/GPRS/RS485, enabling remote monitoring and data logging through the mobile app.
- Robust Protection : Integrated Type II AC & DC Surge Protection (SPD) and an internal DC switch for enhanced safety.
- Weatherproof Design : IP65 rated enclosure ensures durability against dust and water, perfect for harsh outdoor environments.
- Low Noise & Low Heat : Transformer-less technology and natural cooling (on some models) ensure silent operation and higher reliability.
- Net-Metering Ready : Fully compatible with net-metering systems, allowing you to export surplus power and reduce electricity bills.
- Warranty : Comes with a 5-year standard warranty.
