Brand: UTL

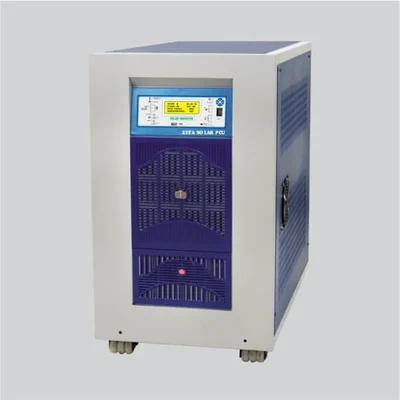

UTL Zeta Pro Solar Hybrid PCU 40240, Three Phase 40kVA 240V Solar Inverter, Built-in Wi-Fi SUPPORT (5 Year Warranty)
SKU: TI-UZ-61984
Delivery By: Jan 18 - Jan 20
MRP : ₹445000
Delivery By: Jan 18 - Jan 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹445000 (Including GST)
Get Extra ₹6,675 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Zeta Pro Solar Hybrid PCU 40240
Three Phase 40kVA 240V Solar Inverter
Built-in Wi-Fi SUPPORT (5 Year Warranty)
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 350 kg
Parameters :
- System Rating (KVA) : 40
- Operating DC Voltage (VDC) : 240
Photovoltaic Input :
- Input open circuit voltage range(Min-Max) (Voc) : 400-720
- Maximum PV Power Recommended/No. of Charge Controller : 40KW/1
- Switching Element/Type of Charger/Solar Charge Controller Rating : IGBT/MPPT/160A
- Peak Efficiency (DC to DC) : 95%
Grid parameter :
- Input Voltage (R.Y.B w.r.t. N) Nominal (VAC) : 220V/Phase
- Supply Phase & Connection : 3Phase/4Wire
- Switching Element/Bypass Element/Grid charger Efficiency (AC-DC) : IGBT/SCR/>85%
- Grid Low Cut Volt. Range RYB wrt N (IT Mode Enable/Disable) (VAC) : NA/120-200
- Grid High Cut Volt. Range R-Y-B wrt N (IT Mode Enable/Disable) (VAC) : NA/245-280
- Grid Charger : Enable/Disable
- Grid Export Mode : Enable/Disable
- IT Load : Enable/Disable
Battery Parameter :
- Battery Low Buzzer : Batt Low Cut+0.2
- Battery Low Cut : 10-11.7
- Battery Charging Voltage Range with SPV (VDC) : SPV Present- SPV Chg. Ref. 1.0V for 158ec, SPV Chg. Ref. +1.5V for 28ec
- Battery Charging Current Range with SPV (A) : SPV Absent SPV Cng. Ref for 155ec, SPV Cng. Ref+0.2V for 25ec
- Battery Charging Voltage Range with Grid (VDC) : 12.8-16
- Battery Charging Current Range with Grid (A) : 12-60
- Operation Mode : Smart/Hybrid/PCU
- Grid Reconnect Range (PCU Mode | Smart Mode) : 11-12
Description
The UTL Zeta Pro 40kVA/240V is a sophisticated 3-phase hybrid solar inverter that intelligently manages power from solar panels, batteries, and the grid. It features a pure sine wave output and built-in Wi-Fi for real-time remote monitoring. Engineered with a robust IGBT-based design, it offers up to 95% efficiency and is built for a 20-year product life, supported by a comprehensive 5-year warranty. Combining advanced DSP technology with a high-efficiency MPPT charge controller, this 3-phase system is ideal for commercial setups, hospitals, and large residential complexes looking for reliable, sustainable energy.
Features
:- Capacity : 40kVA rating with a 240V DC operating voltage.
- Three-Phase System : Supports 3-phase input and output for balanced and stable power distribution across large loads.
- rMPPT Technology : Equipped with UTL’s patented rMPPT (Rapid Maximum Power Point Tracking) charge controller, providing up to 30% more solar energy harvesting compared to conventional controllers.
- Built-in Wi-Fi : Integrated monitoring allows users to track power generation, battery status, and system health via a smartphone or PC.
- Hybrid Intelligence : Multiple working modes (Smart, PCU, and Hybrid) to prioritize solar usage and reduce electricity bills.
- Rugged Protection : Built-in safeguards against short circuits, overloads, high/low voltage, and thermal overheating.
- User-Friendly Interface : Large LCD display for real-time data logging and easy configuration of AC/DC parameters.
