Brand: UTL

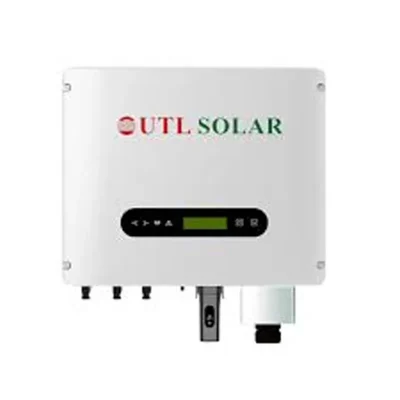

UTL GT-20-GXT2(Pro) - Grid Tie Three Phase 20KW Solar Inverter For Home, Office & Shops With 5 Years Warranty
SKU: TI-UG-55209
Delivery By: Jan 19 - Jan 21
MRP : ₹82000 ₹75900
7% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹75900 (Including GST)
MRP : ₹82000
7% OFF!
Get Extra ₹1,139 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-20-GXT2(Pro) - Grid Tie Three Phase 20KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 20 kg
Input Side :
- Max. DC Input Power (kW) : 26
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 250
- MPPT Operating Range (V) : 200 - 850
- Max. DC Input Current (A) : 26+26
- Max. Short Circuit Current (A) : 39+39
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 2
Output Side :
- Rated Output Power (kW) : 20
- Max. Active Power (kW) : 22
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V, 230/400V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 3
- Rated AC Grid Output Current (A) : 30.3/29
- Max. AC Output Current (A) : 33.3/31.9
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.6 %
- Euro Efficiency : 97.8 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 362 x 527 x 202
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <40 dB
- Cooling Concept : Smart cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL GT-20-GXT2(Pro) is a 20kW Three-Phase Grid-Tie Inverter that seamlessly converts solar DC power into high-quality AC power for home, office, and shop use. By syncing directly with the utility grid, it allows users to power their loads from solar energy first and export any excess power back to the grid for electricity bill credits. Its rugged IP65-rated design ensures it can withstand harsh outdoor environments, while the built-in Wi-Fi monitoring allows you to track energy generation in real-time via a smartphone. This 20kW inverter is a "transformer-less" solution, ensuring maximum energy conversion with minimal heat loss, making it ideal for reducing electricity bills through net metering.
Features
:- High Efficiency : Boasts an MPPT efficiency of up to 99.9% and a maximum conversion efficiency of 98.5%.
- Dual MPPT Trackers : Equipped with 2 MPPT trackers to optimize power generation even with uneven shading or different roof orientations.
- Transformer-less Design : Compact, lightweight, and high-performance technology that reduces energy loss.
- Advanced Protection : Features Type-II SPD (Surge Protection Device) on both AC and DC sides to guard against lightning and voltage spikes.
- Real-time Monitoring : Built-in RS485 and Wi-Fi interface for remote monitoring via the UTL Solar app.
- Rugged Construction : IP65 certified enclosure, making it completely dustproof and waterproof for outdoor installations.
- Smart Grid Support : Features like power export limiting (with CT device) and low harmonic distortion (THDi < 3%) for a clean power supply.
- Warranty : Comes with a standard 5-year onsite warranty.
