Brand: UTL

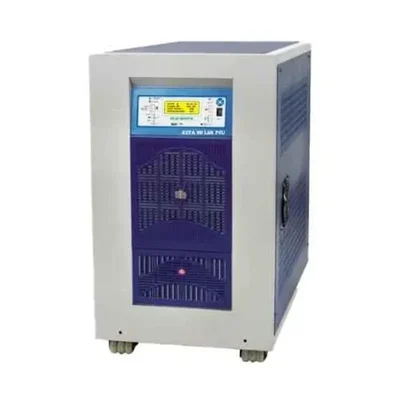

UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output,15kVA 240V Solar Inverter For Home, Office & Shop(5 Years Warranty)
SKU: TI-UO-55258
Delivery By: Jan 19 - Jan 21
MRP : ₹240000 ₹222000
8% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹222000 (Including GST)
MRP : ₹240000
8% OFF!
Get Extra ₹3,330 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output
15kVA 240V Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shop
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 50 kg
- Voltage Range : 400V±20%
- Phase : 3
- Frequency : 50Hz±20%
- Power Factor : >0.92
- Charger Topology : Buck
- Solar : 15kW
- Voc (min-max) : 400V – 740V
- Vmp : 288V - 660V
- Configurable (72 Cell) : 12 Panel in series (4 strings)
- Switching Devices : IGBT
- Switching Freq. : 16KHz
- Type of Charger : PWM with MPPT
- Peak Efficiency (DC – DC) : 96%
- Battery Low Buzzer : Battery Low Cut + 0.2
- Battery Low Cut : 10-11.7V
- Battery High Cut (Charger) : Battery Volt By SPV + 0.7
- Battery Charging Voltage by Grid : 13-14.5V
- Battery Charging Current by Grid : 3-12A
- Battery Charging Voltage by SPV : 13.5-15V
- Battery Charging Current by SPV : 5-24A
- Grid Charger Reconnect : Enable /Disable
- Output Voltage Low Cut : 170-190V
- Output Voltage High Cut : 250-260V
- Voltage : 380V/400V/415V ±1% (3phase 4 wire)
- Load Current : 17.4A
- Efficiency (AC – AC) : >90%@Full Load
- Frequency : 50Hz
- Waveform : Pure Sine Wave
- Voltage Harmonics : <3% Linear Load
- Overload Capacity : 100 to 110%-10 Min.; 110 to 120%-2 Min.; 120 to 150%-30 Sec; 150 to 200%-2 Sec; 200 to 300%-1sec.; 300 to 400%-250msec., >400%-20-30msec.
- Crest Factor : 3:1
- Voltage Harmonics : ±1%
- Frequency Regulation : ±0.05Hz
- Alarm : Battery Low, battery High, Overload
- Extended Battery Charging : Yes
- Caster Wheels : Yes
- Operating Environment : 0-50° C
- Operating Relative Humidity : (5%-95%) Non-condensed
- Storage Environment : 0-75°C
- Storage Relative Humidity : 0-95%
- Degree of Protection : IP20
- Remote Monitoring : Ethernet (Optional)
- Dimension (LXWXH) : 762 x 406 x 685 mm
Description
The UTL Mars 15240 is a 15kVA, 240V Online Solar PCU featuring a 3-Phase Input and 3-Phase Output configuration. It is specifically engineered to handle heavy inductive loads and sensitive electronic machinery by providing a constant, regulated pure sine wave output. With its integrated high-efficiency MPPT charge controller and DSP-based intelligence, it prioritizes solar energy to significantly reduce electricity bills while ensuring zero-millisecond switching (zero changeover time) for uninterrupted operations. Unlike standard off-grid inverters, this "Online" PCU uses double-conversion technology to create an electrical "firewall," protecting sensitive equipment in homes, offices, and shops from surges, sags, and frequency instability.
Features
:- Online Double Conversion : Provides the highest level of power protection by converting AC to DC and back to AC, ensuring a clean and stable voltage output regardless of grid fluctuations.
- High-Efficiency MPPT : Built-in Maximum Power Point Tracking (MPPT) solar charge controller extracts up to 30% more power from solar panels compared to PWM chargers.
- DSP Based Design : Advanced Digital Signal Processing (DSP) ensures high reliability, precision, and faster processing for complex power management.
- Zero Changeover Time : Ideal for sensitive equipment like servers, medical devices, and high-end computers where even a micro-second power gap is unacceptable.
- Configurable Priority : Flexible working modes allow users to set priority between Solar, Battery, and Grid based on their specific needs.
- High Surge Capability : Designed to handle high startup currents (up to 300%) for heavy loads like air conditioners, motors, and industrial machinery.
- Comprehensive Protection : Includes safeguards against short circuits, over/under voltage, overload, battery high/low, and overheating.
- LCD Display : A user-friendly multi-function LCD provides real-time data on solar generation, battery status, load percentage, and fault alerts.
