Brand: UTL

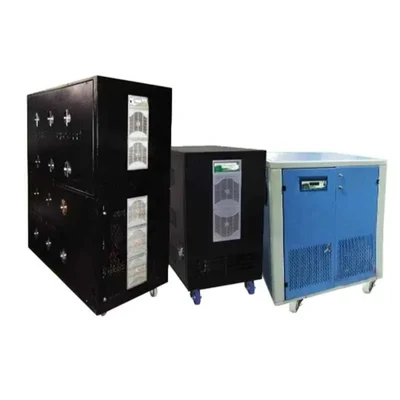

UTL Off Grid Star Online Solar PCU 50360 (3-3)Output,50kVA 360V Solar Inverter For Home, Office & Shop(5 Years Warranty)
SKU: TI-UO-55289
Delivery By: Jan 18 - Jan 20
MRP : ₹620000 ₹608500
2% OFF!
Delivery By: Jan 18 - Jan 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹608500 (Including GST)
MRP : ₹620000
2% OFF!
Get Extra ₹9,128 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL Off Grid Star Online Solar PCU 50360 (3-3)Output
50kVA 360V Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shop
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 110 kg
- Voltage Range : 400V± 20%
- Phase : 3 phase, four wire
- Frequency : 50Hz ± 10%
- Power Factor : 0.94
- Solar : 50KW
- VOC (min-max) : 540-810
- VMP : 430-730
- Configuration 72 Cell : 10 string of 16 panel
- Switching Device : IGBT
- Switching Frequency : 16KHZ
- Type of charger : MPPT
- Peak Efficiency (DC to DC) : 96%
- Voltage (Ph-Ph) : 380/400V/415V ± 1% Configurable by LCD Display
- Load Current Per Phase : 57.9A
- Efficiency (AC to AC) : >88% @ Full Load
- Frequency : 50 Hz
- Waveform : Pure Sin Wave
- Voltage Harmonics : <3 % ( Linear Load )
- Overload Capacity : 100-110%@10Min, 100-120%@2Min; 120-150%@30s; 150-200%@2s; 200-300%@1s; 300-400%@250ms; >400%@20ms
- Crest Factor : 3:1
- Voltage Regulation : ±1%
- Frequency Regulation : ±.05 Hz
- Storage Relative Humidity : 0-95%
- Degree of Protection : IP 20
- Dimension (LxWxH) : 863 x 863 x 1092 mm
Description
The UTL Off-Grid Star Online Solar PCU 50360 (3 In - 3 Out) is a high-capacity, industrial-grade power conditioning unit designed for heavy-duty applications in homes, large offices, and commercial shops. Operating on a 360V DC bank, this 3-phase system provides a "firewall" of protection for sensitive electronic equipment through its True Online Double-Conversion technology, ensuring zero transfer time and a perfectly stabilized power supply.
Features
:- rMPPT Technology : Features a patented rMPPT (Rapid Maximum Power Point Tracking) charge controller that is up to 30% more efficient than standard controllers.
- Pure Sine Wave Output : Advanced DSP (Digital Signal Processing) based design ensures a clean, stable sine wave suitable for the most sensitive medical and IT equipment.
- Zero Transfer Time : As an online PCU, it provides 0ms switching time, ensuring no rebooting of computers or heavy machinery during power transitions.
- High Surge Capability : Capable of handling up to 300% surge current, making it ideal for starting heavy inductive loads like air conditioners, lifts, and motors.
- Smart Monitoring : Supports Ethernet-based remote monitoring, allowing users to track energy generation and performance via the web or mobile app.
- Comprehensive Protection : Built-in safeguards against short circuits, lightning (SPD), input under/over voltage, and thermal overloads.
- Priority Modes : Multiple working modes (PCU, Smart, Hybrid) to maximize solar energy usage and reduce electricity bills.
- Warranty : Comes with a 5-year comprehensive warranty for long-term peace of mind.
