Brand: Polycab

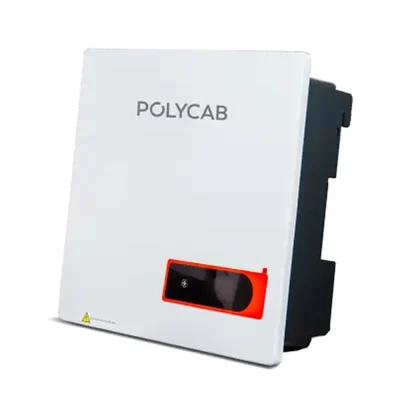

Polycab PSIT-5K-SM1R2 Grid Tie Inverter, 5kW Three Phase-1MPPT, For Residential & Commercial Use With 8 Years Warranty
SKU: TI-PP-62528
Delivery By: Jan 31 - Feb 2
MRP : ₹77400 ₹59500
23% OFF!
Delivery By: Jan 31 - Feb 2 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹59500 (Including GST)
MRP : ₹77400
23% OFF!
Get Extra ₹893 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Polycab PSIT-5K-SM1R2 Grid Tie Inverter
5kW Three Phase Inverter-1MPPT
For Residential & Commercial Use
With 8 Years Warranty
Country of origin: India
Specifications
- Brand: Polycab
- Weight (Approx.) : 17 kg
- Model : PSIT-5K SM1R2
- Rating : 5 kW
Input (PV) :
- Max. Input Voltage : 1100V
- Max. PV Configuration (STC) : 150%
- Rated / Nominal Input Voltage : 620V
- Max. Input Current : 20A
- Max. Short Circuit Current : 30A
- Start Input Voltage : 180V
- MPPT Operating Voltage Range : 160-1000V
- Full Power MPPT Voltage : 190V-500V
- Max. Number of PV Strings : 1
- No. of MPPTs : 1
Output (Grid) :
- Rated AC Active Power : 5,000W
- Max. AC Apparent Power : 5,500VA
- Max. AC Active Power (PF=1) : 5,500W
- Max. AC Output Current : 3*8.4A
- Rated AC Voltage : 380V/400V/415V, 3W+N+PE
- AC Voltage Range : 260V- 510V (Adjustable )
- Rated Grid Frequency : 50Hz/60Hz
- Grid Frequency Range : 45Hz-55Hz / 55Hz-65Hz (Adjustable)
- THDi : <3% (Rated Power)
- DC Current Injection : <0.5% (Rated Current)
- Power Factor : > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG)
Efficiency :
- Max. Efficiency : 97.8%
- Europe Efficiency : 96.2%
General :
- Topology : Transformer-less
- IP Rating : IP66
- Night Self Consumption : <1W
- Cooling : Natural Cooling
- Operating Temperature Range : -25°C to 60°C
- Relative Humidity Range : 0-100%
- Max. Operating Altitude : 4000m
- Noise(typical) : <30dB
- Dimensions (WxHxD) : 398 x 460 x 190 mm
- Warranty : 8 Years
Description
The PSIT-5K-SM1R2 is a 5kW transformerless string inverter that converts DC power from solar panels into high-quality AC power for the grid. With a peak efficiency of up to 98.4%, it ranks among the more efficient inverters in its class. Its robust build and IP66 rating make it suitable for outdoor installation even in harsh environmental conditions. It is engineered to maximize energy yield from solar PV systems while ensuring high reliability and ease of maintenance.
Features
:- High Efficiency: Maximum efficiency of 98.4% with a wide MPPT voltage range (160V – 1000V) to ensure optimal power generation even in low-light conditions.
- Module Compatibility: Designed to support high-power modules (600W+), making it future-proof for modern solar panel technologies.
- Advanced Protection: Built-in DC/AC Type III Surge Protection Devices (SPD), anti-islanding protection, DC reverse polarity protection, and short-circuit protection.
- Smart Monitoring: Supports remote monitoring via Wi-Fi/GPRS/RS485 through a dedicated mobile app and web portal for real-time performance tracking.
- Robust Design: IP66-rated waterproof and dustproof die-cast aluminum cabinet with C5 anti-corrosion protection.
- Quiet Operation: Natural cooling technology keeps noise levels below 30dB, making it ideal for residential areas.
