Brand: Polycab

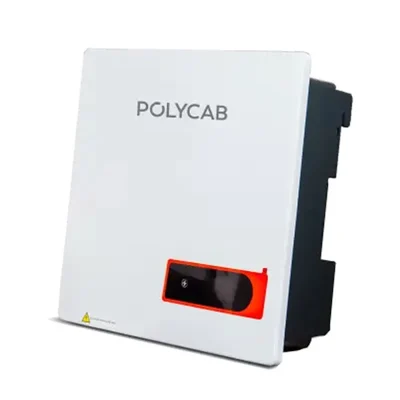

Polycab PSIS-6K0 Grid Tie Inverter, 6kW Single Phase Inverter, For Residential & Commercial Use With 8 Years Warranty
SKU: TI-PP-62522
Delivery By: Feb 26 - Feb 28
MRP : ₹46900 ₹36000
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹36000 (Including GST)
MRP : ₹46900
23% OFF!
Get Extra ₹540 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Polycab PSIS-6K0 Grid Tie Inverter
6kW Single Phase Inverter
For Residential & Commercial Use
With 8 Years Warranty
Country of origin: India
Specifications
- Brand: Polycab
- Weight (Approx.) : 9 kg
- Model : PSIS-6K0
- Rating : 6 kW
Input (PV) :
- Max. Input Voltage : 550V
- Max. PV Configuration (STC) : 150%
- Rated / Nominal Input Voltage : 360V
- Max. Input Current : 20A
- Max. Short Circuit Current : 30A
- Start Input Voltage : 50V
- MPPT Operating Voltage Range : 40-540Vdc
- Full Power MPPT Voltage : 320V-500V
- Max. Number of PV Strings : 1
- No. of MPPTs : 1
Output (Grid) :
- Rated AC Active Power : 6,000W
- Max. AC Apparent Power : 6,600VA
- Max. AC Active Power (PF=1) : 6,600W
- Max. AC Output Current : 30A
- Rated AC Voltage : 220V/230V/240V, L+N+PE
- AC Voltage Range : 160V-300V (Adjustable)
- Rated Grid Frequency : 50Hz/60Hz
- Grid Frequency Range : 45Hz-55Hz / 55Hz-65Hz (Adjustable)
- THDi : <3% (Rated Power)
- DC Current Injection : <0.5%ln
- Power Factor : > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG)
Efficiency :
- Max. Efficiency : 97%
- Europe Efficiency : 96.3%
General :
- Topology : Transformer-less
- IP Rating : IP66
- Night Self Consumption : <1W
- Cooling : Natural Cooling
- Operating Temperature Range : -25°C to 60°C
- Relative Humidity Range : 0-100%
- Max. Operating Altitude : 4000m
- Noise(typical) : 30dB
- Dimensions (WxHxD) : 297 x 282 x 145 mm
- Warranty : 8 Years
Description
The Polycab PSIS-6K0 is a high-performance, single-phase grid-tie solar inverter specifically engineered for residential and small commercial rooftop applications. Designed with reliability in mind, it features a transformerless topology that ensures high efficiency and a compact, lightweight form factor for easy installation. With its dual MPPT (Maximum Power Point Tracking) design, it maximizes energy harvest even in challenging conditions like partial shading.
Features
:- Superior Efficiency : Boasts a maximum efficiency of up to 98.2%, ensuring minimal energy loss during DC-to-AC conversion.
- Dual MPPT Design : Equipped with two MPPT trackers to optimize power generation from solar arrays facing different directions or experiencing uneven shading.
- Wide Voltage Range : Features a low start-up voltage and an ultra-wide MPPT operating range (70V to 540V), allowing the system to start earlier and shut down later in the day.
- Smart Monitoring : Integrated Wi-Fi/GPRS capabilities (optional) with a dedicated mobile app and web portal for real-time performance tracking and remote upgrades.
- Rugged Construction : IP65/IP66 rated for dust and water resistance, making it suitable for both indoor and outdoor installations in harsh environments.
- Comprehensive Protection : In-built DC/AC surge protection (Type III), anti-islanding, short-circuit, and over-voltage protection for maximum safety.
- High Compatibility : Supports high-power modules (string current up to 15A to 20A) and allows for 150% DC overloading.
