Brand: UTL

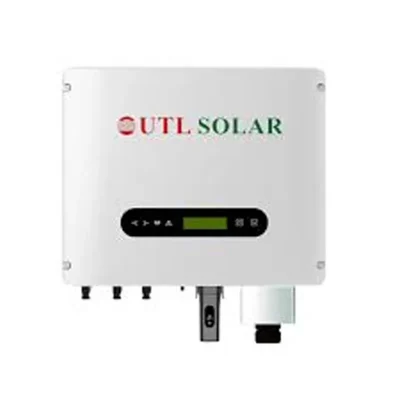

UTL GT-12-GXT2(Pro) - Grid Tie Three Phase 12KW Solar Inverter For Home, Office & Shops With 5 Years Warranty
SKU: TI-UG-55180
Delivery By: Jan 18 - Jan 20
MRP : ₹70000 ₹63900
9% OFF!
Delivery By: Jan 18 - Jan 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹63900 (Including GST)
MRP : ₹70000
9% OFF!
Get Extra ₹959 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-12-GXT2(Pro) - Grid Tie Three Phase 12KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 11 kg
Input Side :
- Max. DC Input Power (kW) : 15.6
- Max. DC Input Voltage (V) : 1000
- Start-up DC Input Voltage (V) : 250
- MPPT Operating Range (V) : 200 - 850
- Max. DC Input Current (A) : 13+26
- Max. Short Circuit Current (A) : 19.5+39
- No. of MPP Trackers : 2
- No. of Strings per MPP Tracker : 1 + 2
Output Side :
- Rated Output Power (kW) : 12
- Max. Active Power (kW) : 13.2
- Nominal Output Voltage/Range (V) : 3L/N/PE 220/380V, 230/400V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 3
- Rated AC Grid Output Current (A) : 18.2/17.4
- Max. AC Output Current (A) : 20/19.1
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 98.3 %
- Euro Efficiency : 97.5 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 330 x457.5 x205
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <30 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL GT-12-GXT2(Pro) is a premium three-phase on-grid (grid-tie) solar inverter designed for high-efficiency energy management in residential, commercial, and industrial settings. With a capacity of 12kW, it seamlessly converts solar DC power into stable AC power to run appliances or export excess energy back to the government grid, significantly reducing electricity bills.
Features
:- High Efficiency : Boasts a maximum efficiency of up to 98.6% and MPPT efficiency greater than 99.8% for maximum energy harvest.
- Dual MPPT Trackers : Allows for more flexible rooftop installations and better performance in varying light conditions.
- Robust Protection : Features built-in Type-II AC & DC Surge Protection Devices (SPD) to safeguard the system against lightning and voltage spikes.
- Weatherproof Design : IP65 certified enclosure, making it suitable for both indoor and outdoor installations.
- Smart Monitoring : Supports remote monitoring via the UTL Solar App through Wi-Fi/GPRS dongles to track real-time power generation.
- Low Harmonic Distortion : THDi < 3% ensures clean power that is safe for sensitive electronic equipment.
- User-Friendly : Comes with an LCD display for easy status monitoring and a transformer-less design for a lightweight, compact form factor.
- Warranty : Backed by a 5-year comprehensive warranty.
