Brand: Polycab

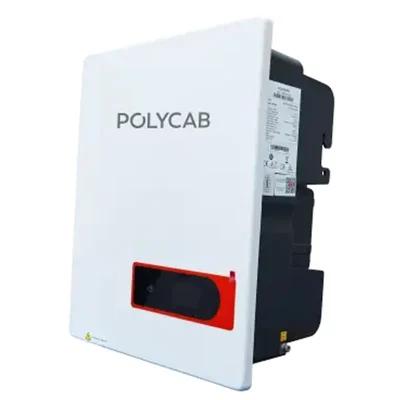

Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10kW Three Phase-2MPPT, For Residential & Commercial Use With 8 Years Warranty
SKU: TI-PP-62684
Delivery By: Feb 25 - Feb 27
MRP : ₹88400 ₹68000
23% OFF!
Delivery By: Feb 25 - Feb 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹68000 (Including GST)
MRP : ₹88400
23% OFF!
Get Extra ₹1,020 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Polycab PSIT-10K-SM1R2 Grid Tie Inverter
10kW Three Phase-2MPPT
For Residential & Commercial Use
With 8 Years Warranty
Country of origin: India
Specifications
- Brand: Polycab
- Weight (Approx.) : 17 kg
Input (PV) :
- Max. Input Voltage : 1100V
- Max. PV Configuration (STC) : 150%
- Rated / Nominal Input Voltage : 620V
- Max. Input Current : 20A
- Max. Short Circuit Current : 30A
- Start Input Voltage : 180V
- MPPT Operating Voltage Range : 160-1000V
- Full Power MPPT Voltage : 190V-500V
- Max. Number of PV Strings : 1
- No. of MPPTs : 2
Output (Grid) :
- Rated AC Active Power : 10,000W
- Max. AC Apparent Power : 11,200VA
- Max. AC Active Power (PF=1) : 11,200W
- Max. AC Output Current : 3*17A
- Rated AC Voltage : 380V/400V/415V, 3W+N+PE
- AC Voltage Range : 260V- 510V (Adjustable )
- Rated Grid Frequency : 50Hz/60Hz
- Grid Frequency Range : 45Hz-55Hz / 55Hz-65Hz (Adjustable)
- THDi : <3% (Rated Power)
- DC Current Injection : <0.5% (Rated Current)
- Power Factor : > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG)
Efficiency :
- Max. Efficiency : 97.8%
- Europe Efficiency : 97.1%
General :
- Topology : Transformer-less
- IP Rating : IP66
- Night Self Consumption : <1W
- Cooling : Natural Cooling
- Operating Temperature Range : -25°C to 60°C
- Relative Humidity Range : 0-100%
- Max. Operating Altitude : 4000m
- Noise(typical) : <30dB
- Dimensions (WxHxD) : 398 x 460 x 190 mm
- Warranty : 8 Years
Description
The Polycab PSIT-10K-SM1R2 is a premium 10kW Three-Phase Grid-Tie Inverter featuring a double MPPT (Maximum Power Point Tracking) channel. Built for durability and high efficiency, it is ideal for commercial and residential rooftops. It converts DC power from solar panels into clean AC power for the grid with minimal loss. Backed by an industry-leading 8-year warranty, it provides peace of mind and a faster return on investment for solar adopters. With its sleek design and robust 10kW output, it is engineered to maximize energy harvest while ensuring long-term stability.
Features
:- Dual MPPT Design: Two independent trackers allow for flexible solar string configurations and maximum power generation from different roof orientations.
- High Efficiency: Delivers a maximum efficiency of up to 98.3%, minimizing energy loss during DC to AC conversion.
- Smart Monitoring: Integrated Wi-Fi/RS485 communication for real-time performance tracking via the Polycab mobile app and web portal.
- Rugged Protection: IP66-rated waterproof and dustproof die-cast aluminum housing with C5 anti-corrosion protection.
- Module Compatibility: Designed to handle high-power modules (600W+), supporting a maximum input current of up to 15A/20A per string.
- Safety First: Built-in DC/AC Type III surge protection, anti-islanding protection, and leakage current monitoring.
- Overloading Capability: Supports up to 150% DC overloading, allowing for more solar panels to be connected to maximize output during low-light hours.
