Brand : UJALA

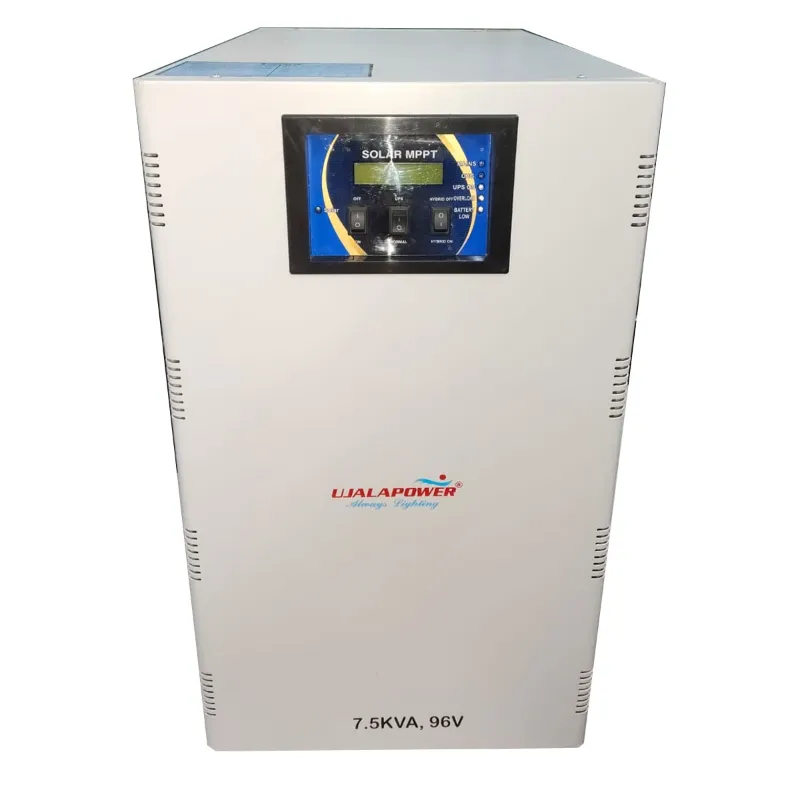

Ujala Pure Sinewave 96V, 7.5 KVA Compact Home Inverter | Designed for Residential Use | Comes with 2 Year Warranty
5.0
SKU : TB-UJ-33579
MRP : ₹70000
₹55000
21% OFF!
-
1
+
Get Extra ₹825 OFF on Prepaid Orders
Delivery By: Nov 9 - Nov 11
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Ujala Pure Sinewave 96V, 7.5 KVA Compact Home Inverter
Designed for Residential Use
Comes with a 2-year Warranty
Country of origin: India
Specification
  • Brand: UJALA
  • Weight (Approx.) : 50 kg
  • Capacity: 7.5 kva
  • No. of Output Phase: Single
  • Battery Nominal Voltage: 96 volt
  • Display indications: LCD & LED (Both)
  • Pv Controller Technology: Mppt
Backup Mode
  • Output Voltage At No Load: 230 +/- 10 V
  • Output Frequency: 50.0±0.5 Hz
  • Output Wave Form: Sine Wave
  • Battery Low Cutoff: 83.2V
  • Overload: 66 AMP +/- 2 AMP
  • Running Load: 62 AMP +/- 2 AMP
Charging Mode
  • Maximum Charging Current: 12 AMP +/- 2 AMP
  • Boost Charging Voltage: 114 V +/- 2 V
  • Trickle Charging Voltage: 108 +/- 2V
  • Input Voltage Range UPS Mode: 100V ~ 290V
  • Input Voltage Range Inverter Mode: 175V ~ 270V
Solar Controller
  • Solar Charger Type: MPPT
  • Solar Panel VOC Max: 350
  • Max Solar Input Current (A): 60
  • Max Solar Input Power (W): 7500
  • Peak Charge Controller Efficiency: 98%
Protections
  • Low Battery Voltage: Yes
  • Battery Overcharge: Yes
  • Overload: Yes
  • Over Temperature: Yes
  • Shot Circuit: Yes
Others
  • Dimensions (LXWXH) in mm :750 X 655 X 410
  • Net Weight (Kgs): 67.95
  • Gross Weight (Kgs): 70.55
  • Clearance on all sides for Installation : Recommended 1 ft.
Wire Connection Formation
  • Battery Connection: Red Wire Batt+/Black Wire Battery-
  • Input (From right to left): Line/Neutral/Earth
  • Solar (From right to left): PV+/PV-
  • Output (From right to left): Output Line/Neutral/Earth
  • MCB's : The MCB available for Mains Input/Battery/Solar
Note: Due to continuous product improvements, the specifications may be Upgraded.
Note: The 2-year warranty covers only manufacturing defects.
Description
The 7500VA 96V Inverter is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.

Features

 :
  • DSP-based technology design ensures high reliability & rugged performance.
  • Inbuilt Solar MPPT based smart charger up to 60 Amp.
  • Pure Sine Wave Output (THD < 3%)
  • User Friendly interfacing dual display LED & LCD (Both)
  • High Power, Fast Charging Speed and high conversion rate.
  • Reducing electricity bills.
  • Increasing energy independence.
  • Contributing to environmental sustainability.
