Brand: DuCar

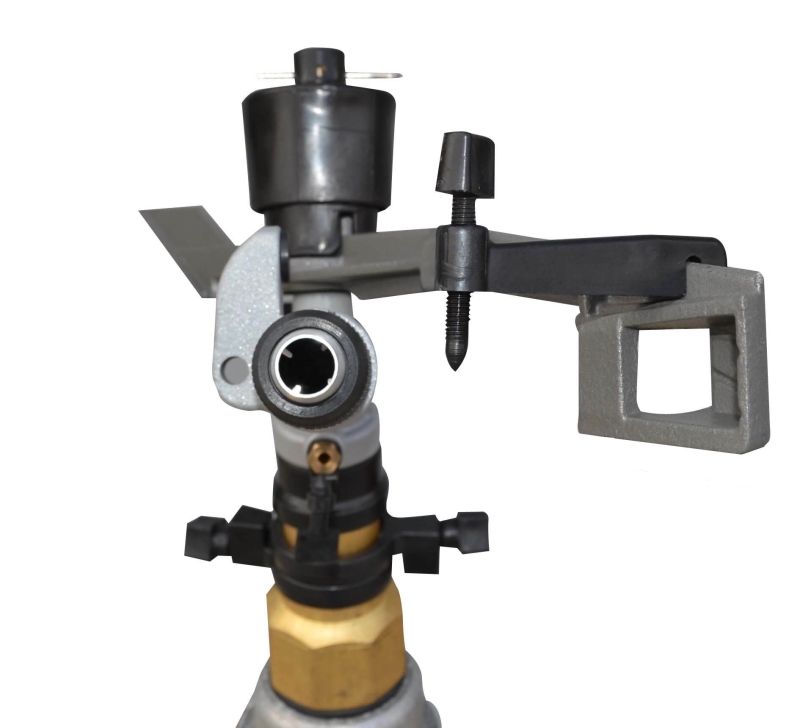

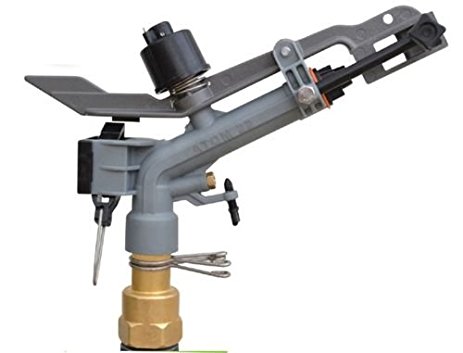

Heavy Duty Irrigation Sprinkler Impact Type Atom 27 Econ

Name: Heavy Duty Irrigation Sprinkler Impact Type Atom 27 Econ
Brand: DuCar
SKU: DK-SP-101
Rating: 80 (5 reviews)

SKU: DK-SP-101

Out of Stock

Water Input : 1-5"
Working Pressure : 1,5-4 kg/cm²
Water Requirement : 3- 10,7 m³
Knockers : 8,10,12 mm
Body Angle : 30 degree

Description

Heavy Duty Irrigation Sprinkler Impact Type Atom 27 Econ

Features :

Adjustable Rotation ,full circle or part circle modes . Impact Type Sprinkler Head for Low and Medium Pressure
High capacity, impact type and medium pressure (1.5 – 4 atm) sprinkler head
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field excellently by using minimum water.
It has Adjustable and movable jet breaker
You may use it for any field crops and vegetables.
It is multifaceted for irrigation and dust control in any stationary system.

Specifications :

Technical Details :

Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
8	.31	1,5	21	16	52	50	3,0	13	803	0,20	3,7
8	.31	2,0	29	18	59	58,3	3,5	15	1017	0,25	3,4
8	.31	3,1	44	21	69	70	4,2	18	1384	0,34	3,0
10	.39	2,0	29	19	62	86,7	5,2	23	1133	0,28	4,6
10	.39	3,0	44	22	72	107	6,4	28	1519	0,38	4,2
10	.39	4,0	56	25	82	123	7,4	33	1962	0,48	3,8
12	.47	2,0	29	20	66	125	7,5	33	1256	0,31	6,0
12	.47	3,0	44	23	75	158	9,5	42	1661	0,41	5,7
12	.47	4,0	56	26	85	178	10,7	47	2289	0,57	4,7
