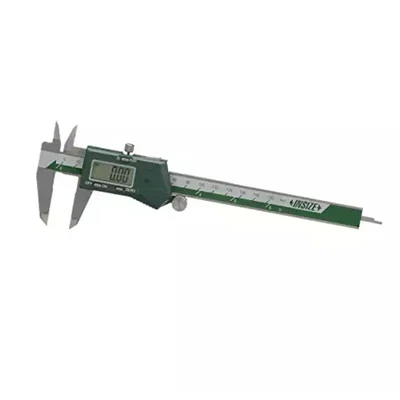

Insize 150 mm Digital Caliper, 1108-150 Standard Model for Measuring Objects

• Model No : 1108-150
• Measurement Range : 0 - 152.4 mm
• Resolution : 0.01 mm
• Measurement Range : 0-6 inch
• Resolution : 0.0005 Inch
• Material : Stainless Steel
• Upper Jaw Length : 16 mm
• Power Supply : Battery CR2032
• Overall Length : 236 mm
• Display : LCD
• Accuracy : ±0.03 mm
• Lower Jaw Length : 40 mm

Features

• Thumb Roller: Includes a thumb roller for fine, controlled adjustments when closing the jaws on delicate parts
• High Precision
• Buttons: on/off, zero, mm/inch, Automatic power off, move the digital unit to turn on power.
• Data Output Port: Equipped with a standard data port. It can be converted to wireless using an optional transmitter (Code 7315-25) or connected via a USB cable

Applications

• Automotive & Aerospace: Used for measuring critical engine components, fasteners, and turbine parts where every measurement must be recorded for safety compliance.
• Medical Device Manufacturing: Ideal for measuring surgical instruments and implants where strict quality assurance (QA) trails are required.
• Mass Production QC: In factories producing thousands of parts, an operator can measure a part and press the "Data" button to instantly update an Excel sheet or SPC (Statistical Process Control) software.
• Laboratory Research: Used in material testing and R&D where precise dimensions of samples need to be logged into research databases without human transcription errors.
