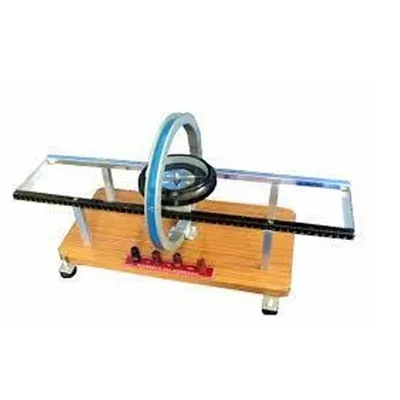

Reliant Lab Stewart & Gee Apparatus

For Comparison of Coil Turns and Magnetic Field Mapping

Country of origin: India

Brand: Reliant Lab

Circular Frame Material : Aluminum
Rod Material : Aluminum
Rod Graduation : 50 cm

The Reliant Lab Stewart & Gee Apparatus is a sophisticated physics laboratory instrument designed to study the variation of the magnetic field along the axis of a current carrying circular coil. It consists of a large, vertically mounted circular coil with multiple turns of insulated copper wire. A long, non-magnetic wooden or brass rail passes through the center of the coil, supporting a sliding carriage that holds a sensitive magnetic compass box. By moving the compass box along the axis at measured distances, students can experimentally verify the Biot Savart law and observe how the magnetic field intensity decreases as the distance from the center of the coil increases.

Features

Precision Wound Coil: Features a large diameter circular coil wound with high quality insulated copper wire, often with multiple tapping points.
Graduated Axial Rail: Equipped with a non-magnetic rail that is accurately graduated in millimeters for precise distance measurements.
High Sensitivity Compass Box: Features a permanent magnetic needle with a long aluminum pointer and an anti parallax mirror for accurate degree readings.
Sturdy Non Magnetic Base: The entire assembly is mounted on a heavy, stable base with leveling screws to ensure perfectly horizontal and vertical alignment.
