Stihl WP-230
8 meter Suction Capacity
27 meter Delivery Capacity
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Stihl

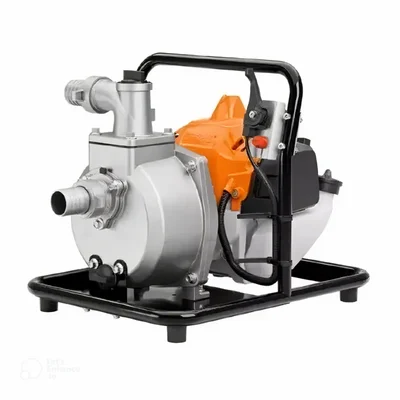

Stihl WP 230, 2-stroke 40.2-cc 1.5 inch Agriculture Water Pump
SKU : AB-SL-21611
MRP :
₹22990
-
1
+
4773 people have viewed this recently
Delivery By: Jul 6 - Jul 8
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Stihl Petrol Water Pump
Country of origin: Germany
Specification
- Brand: Stihl
- Power : 2.1 hp
- Weight (Approx.) : 10.8 kg
- Fuel Used : Petrol
- Displacement : 40.2 cc
- Stroke : 2
- Model No. : WP-230
- Rated speed : 8500
- Maximum Suction Head : 8 meter
- Maximum Delivery Head : 27 meter
- Maximum Discharge : 250 LPM
- Oil Consumption : 650 ml/hr.
- Tank volume : 800 ml
- Tank capacity : 0.8 litre
Description
A water pump is a machine that is used to transfer water from one location to another. This can be used to transfer water from one place to another which can be used for irrigation, or it can be used to remove water from an area to prevent damage. Stihl WP 230 Petrol Water Pump is highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation. It is widely used in agriculture fields, irrigation, farming land, gardening, farm-houses, fountains, drain water from a basement or shallow flooded areas, drain and fill a swimming pool or dam.
Features
:- Potable Design : It is designed to handle the most toughest jobs like irrigating a field, draining a pool in no time, pump out a flooded trench, fill or empty a water storage tank.
- Extra Lifting Capacity: It has higher suction power and give high discharge in its operating range.
- Highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation.
Accessories
:- Spanner Set
- Foot Valve
- Aluminum Coupler
- Washers
- Clamps
- Rubber Feet
Applications
: Used in agriculture fields, irrigation, farming land, gardening, farm-houses, fountains, drain water from a basement or shallow flooded areas, drain and fill a swimming pool or dam.
Usage
:Before you start:
- In a clean fuel container, mix 2T oil with petrol in the desired ratio (40 ML Oil in 1 Liter Petrol)
- Shake the container well to mix the fuel.
- Attach the suction hose to the pump's intake and the delivery hose to the outlet.
- Ensure all connections are secure and leak-free.
- Prime the pump by filling it with water through the priming plug. This removes air and prepares it to draw water effectively
Starting the Engine:
- Ensure the fuel valve is open, allowing petrol to flow to the engine .If the engine is cold, engage the choke.
- Pull the recoil starter cord gently until you feel resistance, then give it a sharp tug.
- Repeat until the engine starts.
- Once the engine starts, gradually disengage the choke as it warms up.
- Adjust the throttle to control the water flow rate
**Turn off the engine and allow it to cool before refueling.
