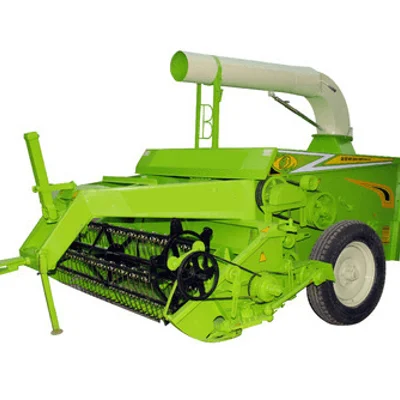

Straw Reaper or Paddy Chopper Attachment for Tractor
Straw Reaper offered provides functioning as a threshing machine where it runs the function of cutting, threshing as well as cleaning the straw in one operation. Here, the wheat stalks which are left after combine harvest are cut using oscillating blades while the revolving reel helps in pushing them back toward auger. He process involves stalks being conveyed back into machine through auger & guide drum where it reaches threshing cylinder that cuts the stalks into small pieces against concave.
Product Type : Straw Reaper
Brand : Made in India
Effective Cutting Width : 2100 mm
Working Length : 3676 mm
Working Height : 2100 mm
Cutting Capacity : 2-3 Acres/Hr
Working Width : 2470 mm
Weight : 2000 Kg (Approx)
Straw Reaper is a chopper machine which cuts, Threshes & clean the straw in one operation. The wheat stalks left after combine harvest are cut by an oscillating blades while revolving reel pushes them back toward and auger. The stalks are conveyed into the machine by the auger and guide drum, which reaches the threshing cylinder which cut the stalks into small pieces against concave.
It give superior separating performance. The short fragment (straw) fall through the bars of the concave. Double blower operating just behind rushes the straw to trolley attached and separate the dust particles.
