Brand: Generic ( Made in India )

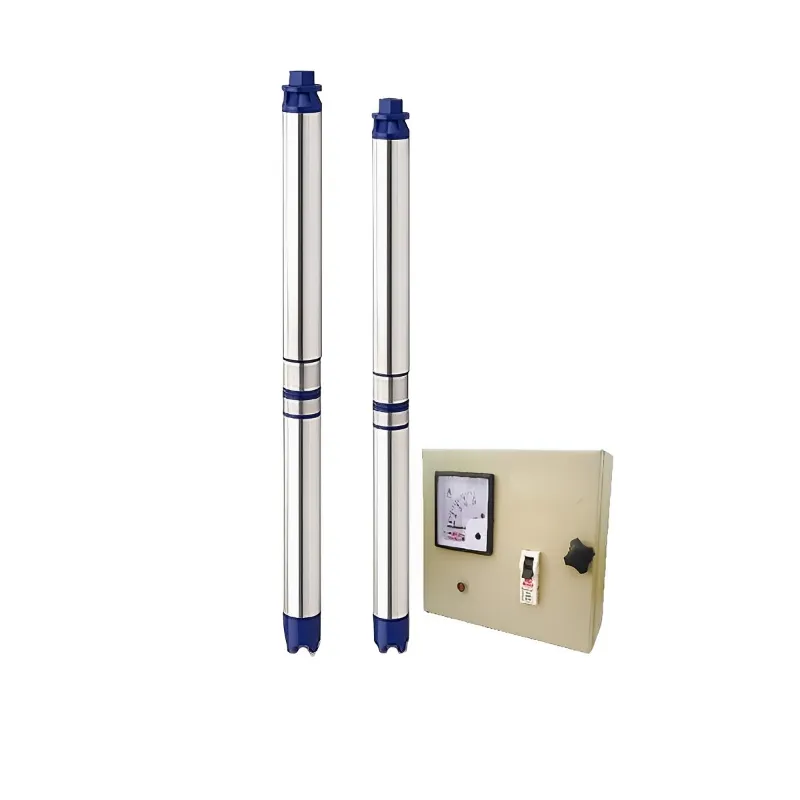

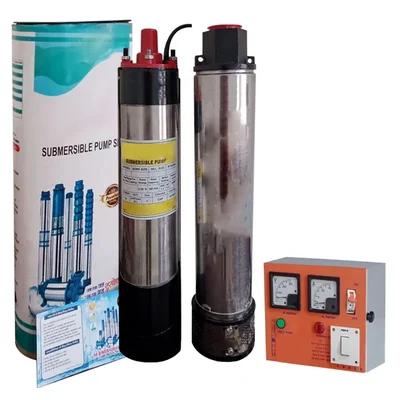

Heavy Duty 1 Hp 10 Stage 1Phase (V4) Oil Cooled Borewell Submersible Pump With Control Panel, 144ft Head-1 Year Warranty
SKU: RON-SM-02
7 people have bought this recently
Delivery By: Dec 19 - Dec 21
MRP : ₹7900 ₹4999
37% OFF!
7 people have bought this recently Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4999 (Including GST)
MRP : ₹7900
37% OFF!
Get Extra ₹75 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Heady Duty 1 Hp V4 Single Phase Borewell Submersible Pump With Control Panel
10 Stage, 44m Head, 90 LPM Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Power : 1 hp
- Weight (Approx.) : 14 kg
- Flow Rate : 90 lpm
- Head : 44 meter
- Product Type : Borewell Submersible Pump
- Power : 0.75 kW
- No of Stages : 10 Stage
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt, 50 Hz
- Bore Size : V4
- Head Range for Non Over Loading : 144 Feet
- Delivery Pipe Inner Size : 32mm
- Cooling Type : Oil Cooled
- Full Load Current : 7 Amp.
- Winding Material : Aluminium
- Category : B
- Duty : Continuous (S1)
- Face : 1
- Connection : CAP
- Condition : 36 MFD
Suitable For :
- 4 inch (100 mm) V4 Boring.
Material of Construction :
- Motor Body Material : SS Pipe
- Motor Shaft Material : MS Steel
- Pump Housing Material : SS Pipe
- Impeller Material : Kora 4 Plastic
- Pump Shaft Material : MS Steel
Description
The pump is loaded with varied features and sturdy design adds on to the life of the pump. The motor is capable of withstanding wide voltage fluctuations upto 230 volts.
Features
:- Long life motor with the control panel.
- Thermal Overload Protector
- Heavy duty pump.
Accessories
:- Control Panel
Warranty :
- One year warranty on Manufacturing Defects only.
