Brand: Toshweld

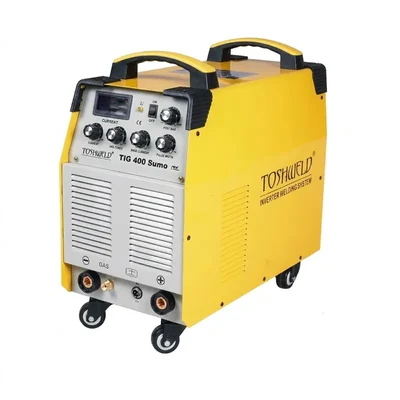

Toshweld Sumo 3-Phase IGBT TIG & ARC Welding Machine, Heavy Duty 400A Dual Process Welder, TIG / ARC 400 Sumo
SKU: TI-TT-72143
Estimated Delivery By: May 23 - May 25
MRP : ₹57007 ₹47506
17% OFF!
Estimated Delivery By: May 23 - May 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹47506 (Including GST)
MRP : ₹57007
17% OFF!
Get Extra ₹713 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
An industrial-grade 400A three-phase dual-process inverter welding plant with advanced IGBT technology. It features high-frequency (HF) ignition for flawless TIG welds and powerful stick welding on plates up to 20mm thick.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 24 kg
- Output Current Range : 400 amp
- Technology : IGBT
- Model: TIG 400 Sumo (TIG / ARC 400 Sumo)
- Machine Type: Inverter TIG / Stick Dual-Process Industrial Welder
- Technology: IGBT Inverter System
- Phase: Three Phase (3 Phase)
- Input Voltage (V): AC415V±15%
- Input Power Capacity: 13.1 kVA (TIG) / 18.2 kVA (ARC)
- Output Current Range: 7 – 400 A
- Rated Input Current: 20 A (TIG) / 27.7 A (ARC)
- No-Load Voltage: 65 V
- Arc Ignition Type: HF (High-Frequency) Ignition
- Power Factor: 0.93
- Electrode Size Compatibility: 2.0 mm – 5.0 mm
- Welding Plate Thickness: 0.5 mm – 12.0 mm (TIG) / 2.0 mm – 20.0 mm (ARC)
- Dimensions: 20.5 x 10.5 x 21.5 Inches
Description
The Toshweld TIG/ARC 400 Sumo is a high-end, high-capacity industrial dual-process inverter welding station designed for heavy-duty stick (MMA/ARC) and high-precision TIG (Tungsten Inert Gas) operations. This heavy-duty device offers a highly polished, low-spatter arc over a dynamic output current range of 7 to 400 Amps thanks to its sophisticated, continuous-duty IGBT inverter core. It uses specialist High-Frequency (HF) arc ignition for a non-contact arc start to prevent contamination of the workpiece and tungsten while operating smoothly on an industrial three-phase 415V AC line with an amazing 18.2 kVA input capacity. The Sumo model offers perfect structural penetration and clean sheet-metal connections on stainless steel, carbon steel, and low-alloy plates up to 20mm thick. It is housed in a sturdy mobile cabinet with heavy-duty caster wheels.
Features
:- Dual-Process Performance: Using a specialized front-panel rocker switch, it effortlessly switches between heavy structural stick (ARC/MMA) electrode welding and precision TIG welding.
- Non-touch HF Ignition: High-frequency arc initiation keeps your tungsten sharp and reduces weld inclusions by enabling instantaneous arc production without physical touch.
- Comprehensive Parameter Dial Array: Contains specialized front-panel control potentiometers to individually adjust arc force dynamics, post-flow gas delivery, downslope time, and welding current.
- Extreme thermal efficiency, outstanding duty cycle capabilities, and instant arc compensation against line drops are all provided by the Industrial IGBT Module Core.
- Heavy-Duty Mobile Chassis: Designed to negotiate busy factory floors with ease, this chassis has a sturdy layout, two sturdy top handles, and heavy-duty four-wheel shop casters.
Applications
:- Stick welding large I-beams, channel steel sections, angle iron frameworks, and building constructions are examples of heavy structural construction.
- High-penetration root, fill, and cap passes on thick-walled industrial pipelines and pressure storage vessels are used in the fabrication of industrial pipelines and vessels.
- Precision Stainless Steel Manufacturing: Superior TIG welding on chemical tanks, industrial exhaust networks, and hygienic food processing equipment.
- Heavy machinery maintenance includes repairing and strengthening worn parts on material crushers, structural tractor mounts, and earthmoving excavators.
Usage
:- Before launching the system, confirm that the infrastructure of your production plant has a reliable, grounded three-phase AC 415V power input line.
- For normal stick welding, firmly fasten the electrode holder to positive (+) and ground clamp to negative (-) on your strong quick-connect dinse cable terminals in a clockwise direction.
- Tightly fasten your TIG torch gas link to the front brass gas connector panel and connect your argon shielding gas regulator line to the rear inlet.
- After choosing TIG or ARC mode on the toggle switch, use your sheet thickness or rod gauge to determine the desired amperage and post-flow gas timings.
