Brand : ALGO

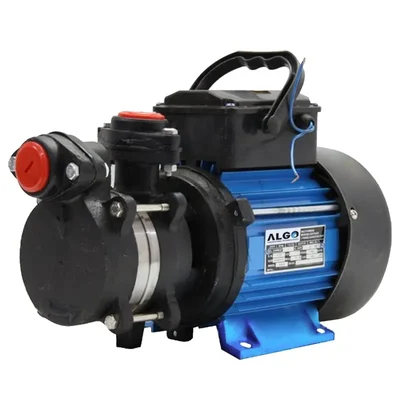

Algo 1Hp Single Phase Super Suction Self Priming Monoblock Pump, 25m Max. Head, 15x15mm (Magni-100) - 1 Year Warranty
SKU : TI-A1-21161
MRP : ₹9000
₹6000
33% OFF!
-
1
+
853 people have viewed this recently
Get Extra ₹90 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo Self Priming Monoblock Pump (Magni-100)
1 Hp, Single Phase
25M Max. Head, 37LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 1 hp
  • Weight (Approx.) : 15 kg
  • Flow Rate : 37 lpm
  • Head : 25 meter
  • Model No : Magni-100
  • Product Type : Super Suction Self Priming Monoblock Pump
  • Brand : Algo
  • Power : 1 HP (0.75 kW)
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz AC Power Supply
  • Head Range : 5 to 25 Meter (16 to 82 Feet)
  • Discharge Range : 37 To 14 LPM (2220 to 840 LPH)
  • Pipe Size (Suction X Delivery) : 15X15 mm
  • Speed : 2900 RPM
  • Duty : S1 (Continuous)
  • Protection : IP 44
  • Insulation Class : B

Operating Condition :
  • Suction Lift : Upto 8 Meter
  • Max. Liquid Temperature : 50°C
  • Max. Ambient Temperature : 40°C
  • Max. Operating Pressure : 8 Bar

Material Of Construction :
  • Pump Casing & Brackets : Cast Iron
  • Motor Body : Aluminium/Cast Iron
  • Impeller : Forged Brass
  • Diffuser : Stainless Steel
  • Shaft : SS410/ EN-8
  • Mechanical Seal : Carbon Ceramic
  • Bearing : Double Shielded Ball Bearing
Description
A monoblock pump is a type of pump where the motor and pump are integrated into a single unit. These pumps are commonly used in various applications such as domestic water supply, irrigation, agriculture, industrial processes, and public water supply.

Features

 :
  • Precisely Balanced Impeller and Shaft
  • Double Shielded Ball Bearings
  • Heavy Duty Forged Brass Impeller
  • Fitted with Thermal Overload Protector
  • Integrated Quality Control Systems

Applications

 :
  • Residential
  • Gardens
  • Car Washing
  • Water Circulation

WARRANTY :
  • 1 Year Warranty as Per Algo Policy
