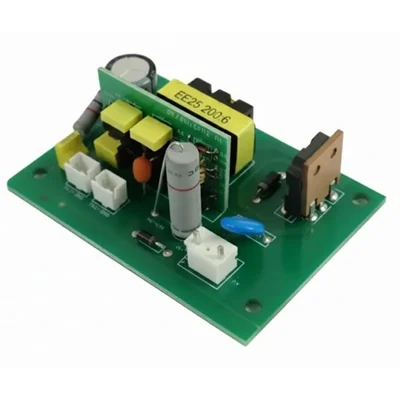

NG Weld 24V Supply Card With Heat Sink, Power Module for Inverter Welding Machines
SKU: TI-NW-54333
Delivery By: Jan 10 - Jan 12
MRP : ₹947 ₹729
23% OFF!
Delivery By: Jan 10 - Jan 12 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹729 (Including GST)
MRP : ₹947
23% OFF!
Get Extra ₹11 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Heat Sink
Turns Ratio 200:6
EE25 High-Frequency Ferrite
24V DC (Regulated) Output Voltage
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 100 gm
- Model : Heat Sink
- Transformer Type : EE25 High-Frequency Ferrite
- Turns Ratio : 200:6
- Output Voltage : 24V DC (Regulated)
- Protection : Short-Circuit, Overload, and Surge Protection
- PCB Material : High-Temp Resistant FR4
Description
The NG WELD 24V Supply Card is a premium power solution for inverter welding machines. Engineered for high-efficiency conversion, it provides a stable 24V DC output to power control circuits, fans, and relays. Featuring a robust EE25 transformer and advanced protection, it ensures long-term durability and consistent performance in demanding industrial environments.
Features
:- Advanced EE25 Architecture : Utilizes a high-quality 200:6 ratio transformer for superior conversion efficiency.
- Rock-Solid Stability : Delivers clean, low-ripple 24V power essential for sensitive digital display boards.
- Built for Extremes : Designed to withstand the high-heat and dusty environments of industrial welding.
- Plug-and-Play Integration : Standardized layout makes it a direct replacement for most common inverter welding brands.
Applications
:- Inverter Welders : Primary power source for ARC, TIG, and MIG control logic cards.
- Cooling Systems : Drives 24V DC high-speed cooling fans.
- Switching Logic : Powers internal relays, solenoids, and firing circuits.
- Digital Interfaces : Supplies stable energy to front-panel LED/LCD displays.
Usage
:Usage Guidance :
- Isolation : Ensure the machine is completely unplugged and capacitors are discharged before opening the chassis.
- Mounting : Use non-conductive standoffs to mount the NG WELD EE25 card securely.
- Connection : Match the input and output wires carefully; ensure the 200:6 transformer leads are correctly aligned with the primary circuit.
- Verification : Test the output voltage with a multimeter before connecting the sensitive control board.
Maintenance Guidance :
- Dust Management : Use a vacuum or low-pressure air duster to keep the EE25 transformer clear of metallic debris.
- Heat Check : Ensure the surrounding airflow is not blocked to prevent thermal stress on the capacitors.
- Tighten Terminals : Periodically check that vibration hasn't loosened any screw terminals or solder joints.
